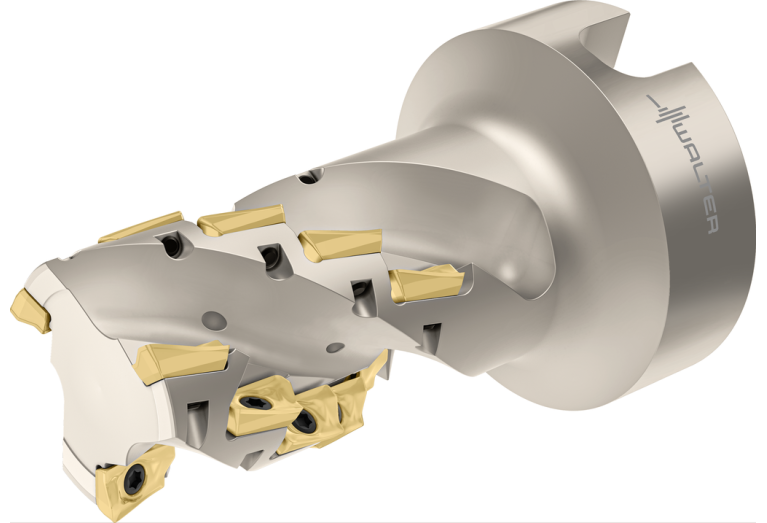

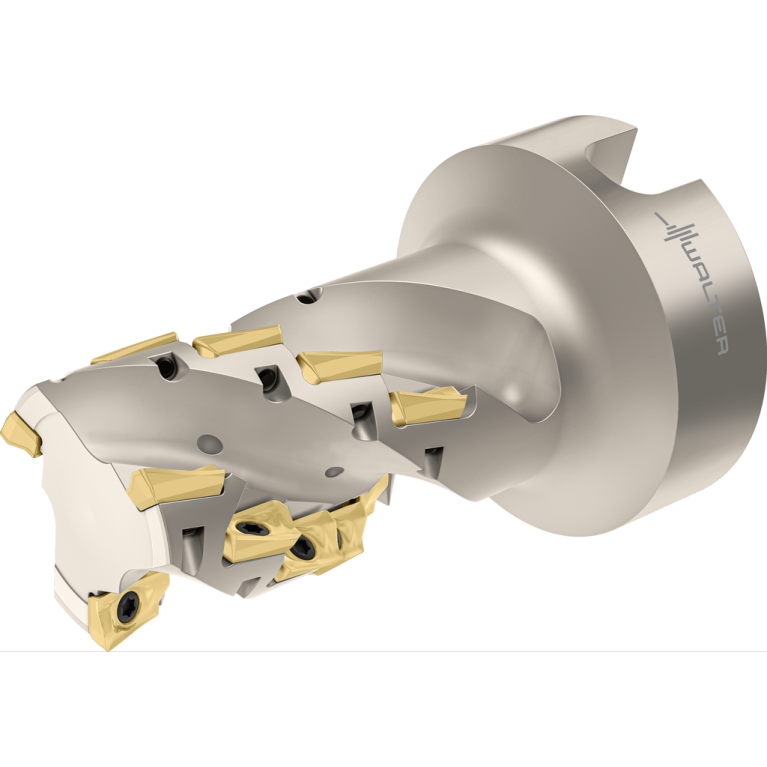

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F4138.N6.040.Z03.54

F4138.N6.040.Z03.54

Артикул: 5159804

В наличии

В корзину

Описание

Характеристики

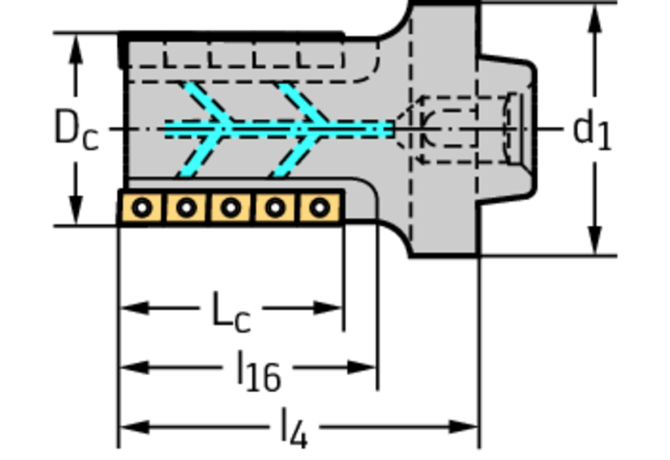

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

54 mm

AZ Plunge depth maximum

1 mm

BD Body diameter

38.5 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

NCT06300195

FamilyProducts

Helical milling cutters F4138

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

5159804

Interface codes

J6 / J61

ISO

NCT01C0630$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02 ISO

WR$$AD1204043R***08

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-AD1204043R***08

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

NCT01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT06300195

LPR Protruding length

105 mm

LS Shank length

16 mm

LU Usable length

69 mm

Name Identifying order number

F4138.N6.040.Z03.54

OAL Overall length

121 mm

RMPX Ramping angle maximum

1.91 Degree

RPMX Rotational speed maximum

22400 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

1.064 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
