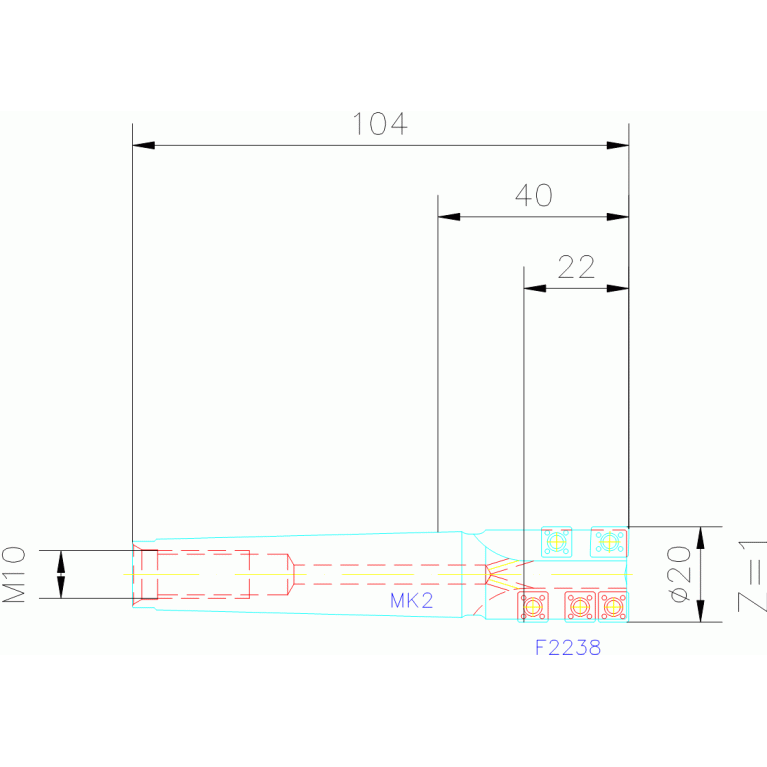

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F2238.M.020.Z01.22

F2238.M.020.Z01.22

Артикул: 5001519

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

MKG00201085

FamilyProducts

Porcupine milling cutters F2238

HAND Cutting direction

R - Right

ID Technical product number

5001519

Interface codes

J6 / J61

ISO

MKG10C0020$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

40 mm

LOC-01 BI Block index

LOC-01 ISO

WR$$LP0703**3R*****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-LP0703**

LOC-02 BI Block index

LOC-02 ISO

WR$$SP0603**3R*****

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-SP0603**

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

MKG Morse taper

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0020

LOC-03 DCONMS Diameter

2 mm

LOC-03 ISO

MKG10C0020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00201085

LPR Protruding length

40 mm

Name Identifying order number

F2238.M.020.Z01.22

OAL Overall length

104 mm

RPMX Rotational speed maximum

40000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO296

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.142 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
