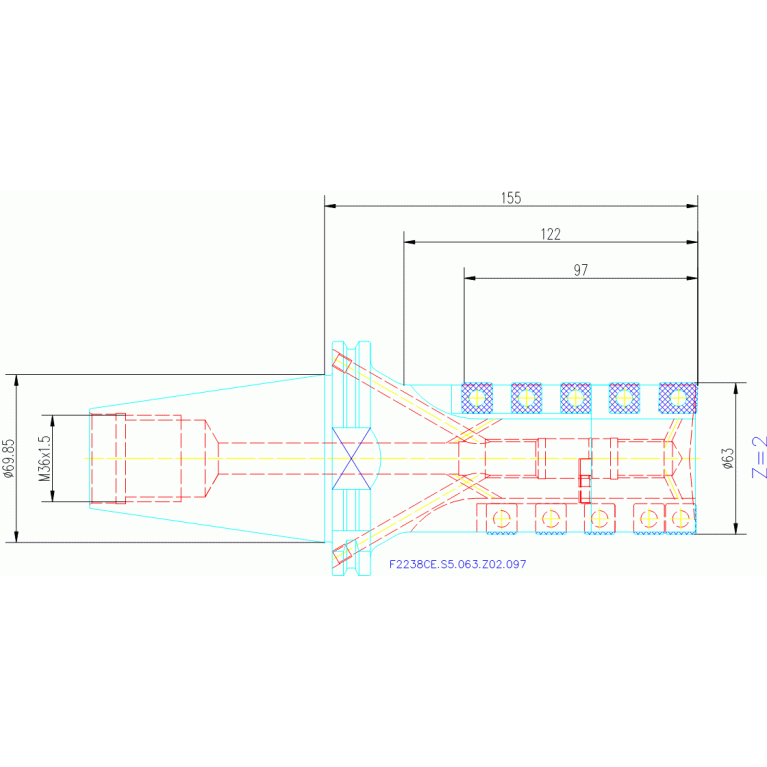

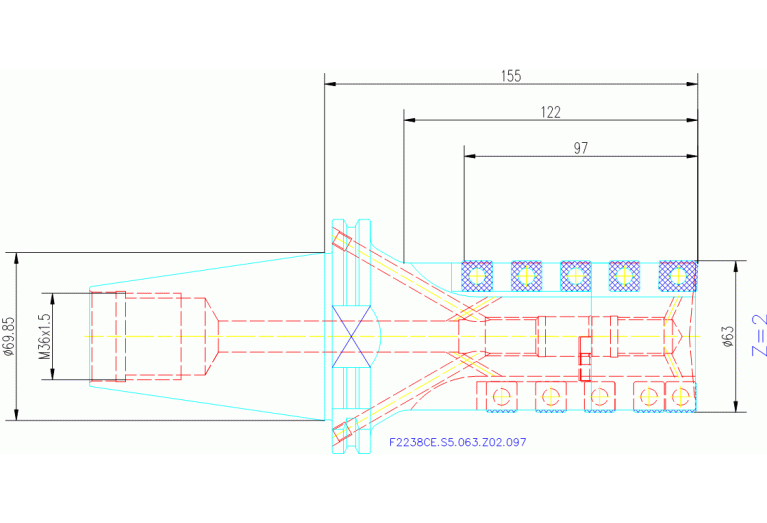

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F2238CE.S5.063.Z02.097

F2238CE.S5.063.Z02.097

Артикул: 5001449

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

97 mm

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SKG05001195

FamilyProducts

Porcupine milling cutters with front piece F2238CE

HAND Cutting direction

R - Right

ID Technical product number

5001449

Interface codes

J6 / J61

ISO

SKG11C0500$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

155 mm

LOC-01 BI Block index

LOC-01 ISO

WR$$LP1504123R***12

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-LP1504**

LOC-02 BI Block index

LOC-02 ISO

WR$$SP1204083R***08

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-SP1204**

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

SKG11C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001195

LPR Protruding length

155 mm

LU Usable length

122 mm

Name Identifying order number

F2238CE.S5.063.Z02.097

OAL Overall length

252.6 mm

STDLET Standard letter to the standard number

STDNO Standard

ISO7388-1

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

4.592 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
