Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F2238CE.S5.063.Z02.087

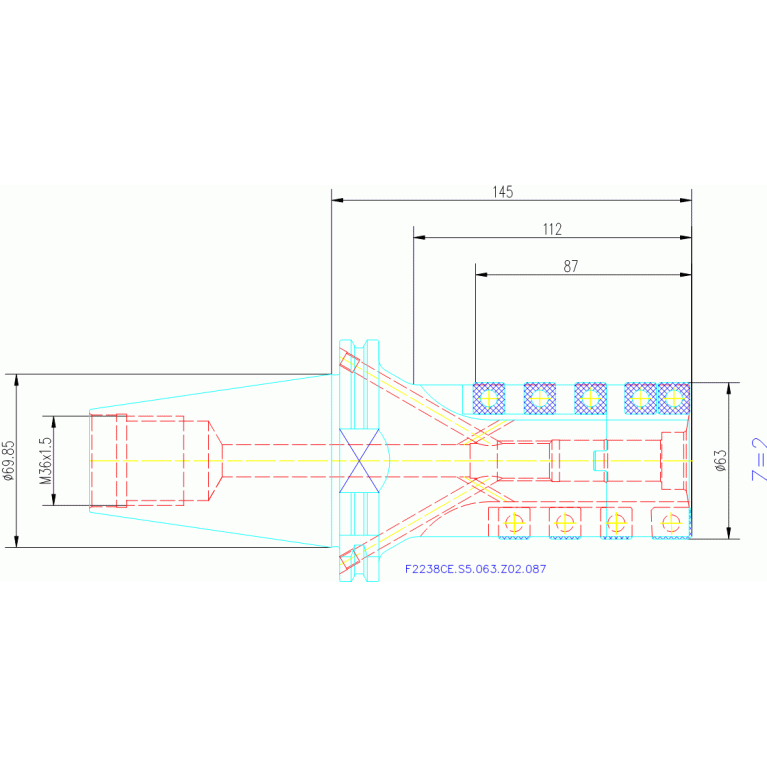

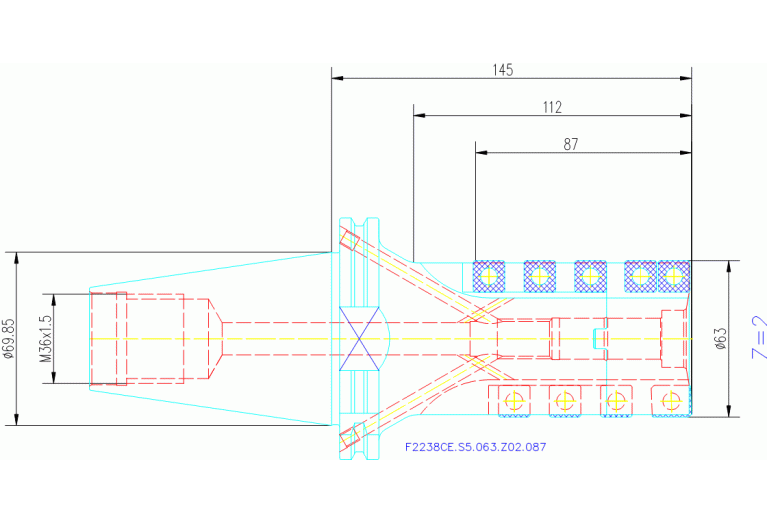

F2238CE.S5.063.Z02.087

Артикул: 5043065

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

87 mm

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SKG05001195

FamilyProducts

Porcupine milling cutters with front piece F2238CE

HAND Cutting direction

R - Right

ID Technical product number

5043065

Interface codes

J6 / J61

ISO

SKG11C0500$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

145 mm

LOC-01 BI Block index

LOC-01 ISO

WR$$LP1504123R***12

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-LP1504**

LOC-02 BI Block index

LOC-02 ISO

WR$$SP1204083R***08

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-SP1204**

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

SKG11C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001195

LPR Protruding length

145 mm

Name Identifying order number

F2238CE.S5.063.Z02.087

OAL Overall length

242.6 mm

STDLET Standard letter to the standard number

STDNO Standard

ISO7388-1

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

4.486 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
