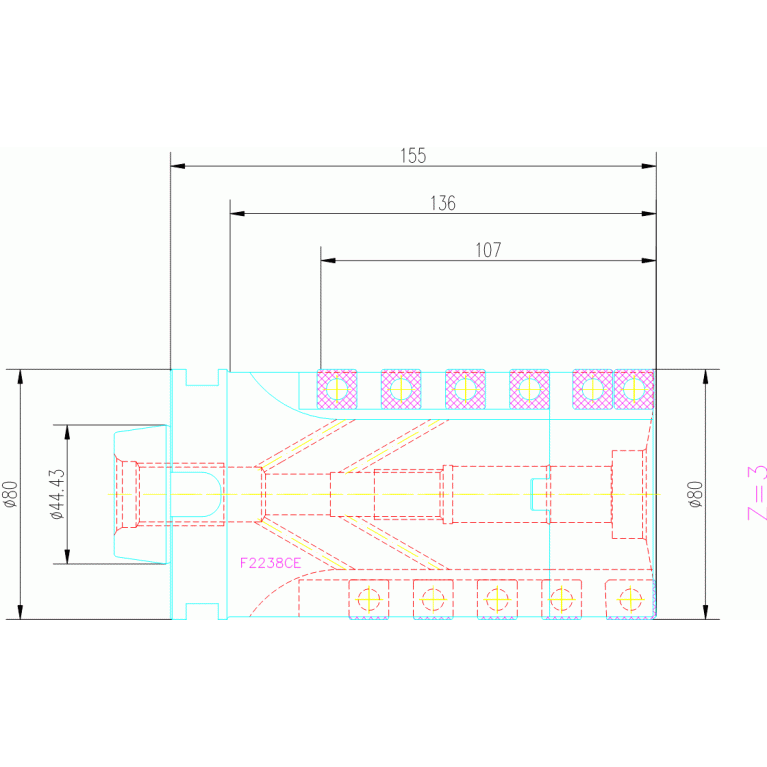

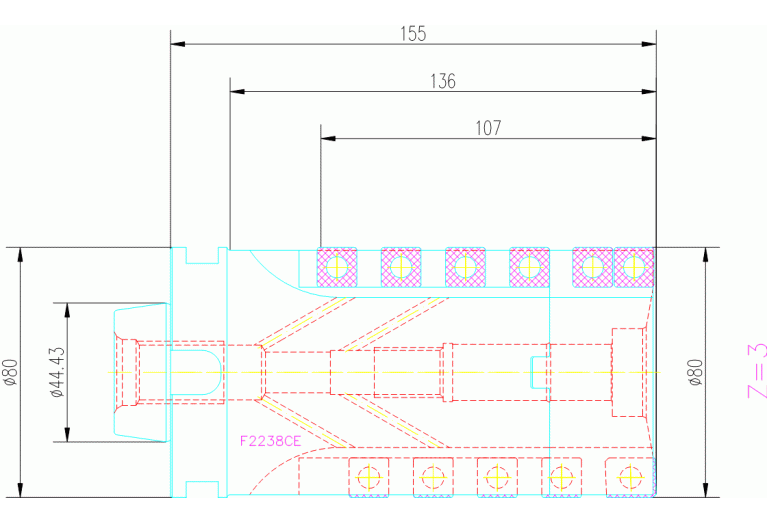

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F2238CE.N8.080.Z03.107

F2238CE.N8.080.Z03.107

Артикул: 5043062

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

40 mm

AZ Plunge depth maximum

1 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

80 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

NCT08000185

FamilyProducts

Porcupine milling cutters with front piece F2238CE

HAND Cutting direction

R - Right

ID Technical product number

5043062

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

NCT01C0800$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0800

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

NCT01C0800$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT08000185

LPR Protruding length

155 mm

LU Usable length

155 mm

Name Identifying order number

F2238CE.N8.080.Z03.107

OAL Overall length

173 mm

RMPX Ramping angle maximum

0 Degree

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

4.077 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
