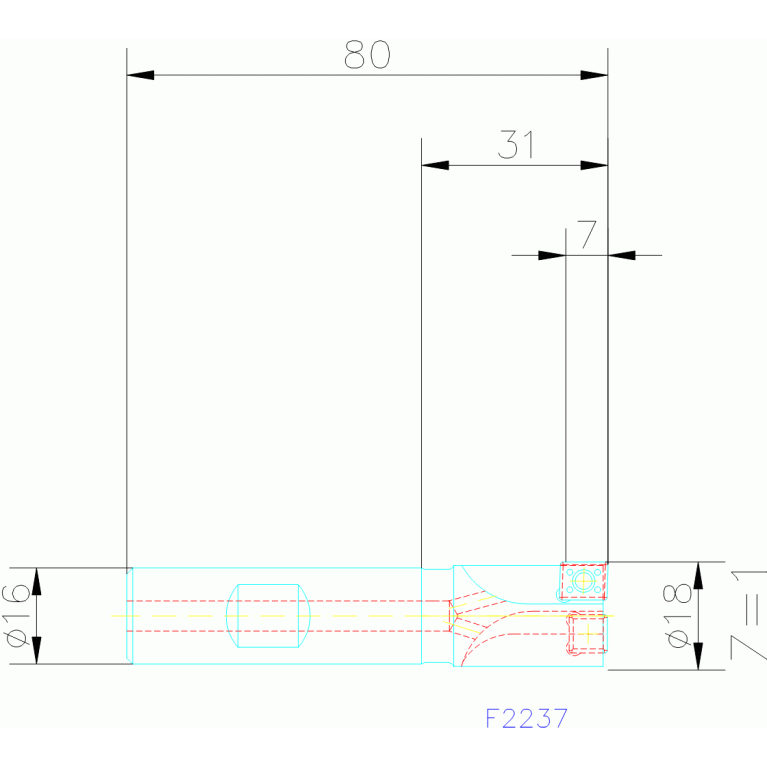

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill F2237.W.018.Z01.07

F2237.W.018.Z01.07

Артикул: 5001016

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

7 mm

AZ Plunge depth maximum

0.8 mm

BD Body diameter

16.8 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

18 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01601015

FamilyProducts

Routing cutters F2237

HAND Cutting direction

R - Right

ID Technical product number

5001016

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

ZYL10G1600h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL10G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601015

LPR Protruding length

31 mm

LS Shank length

48 mm

LU Usable length

23.5 mm

Name Identifying order number

F2237.W.018.Z01.07

OAL Overall length

80 mm

RMPX Ramping angle maximum

0 Degree

STDLET Standard letter to the standard number

STDNO Standard

ISO3338-2

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.106 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
