Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill DCCCR5018S508

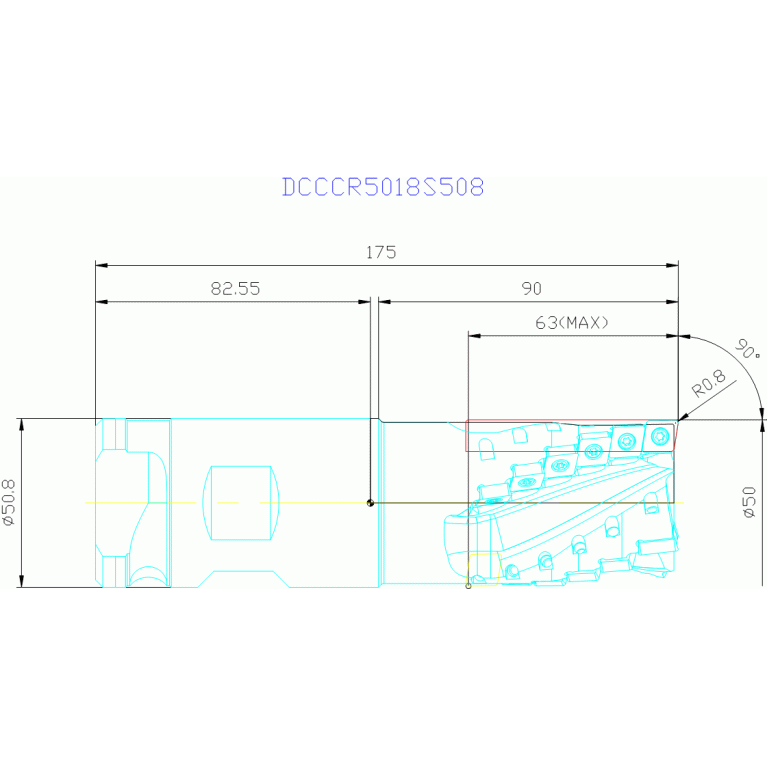

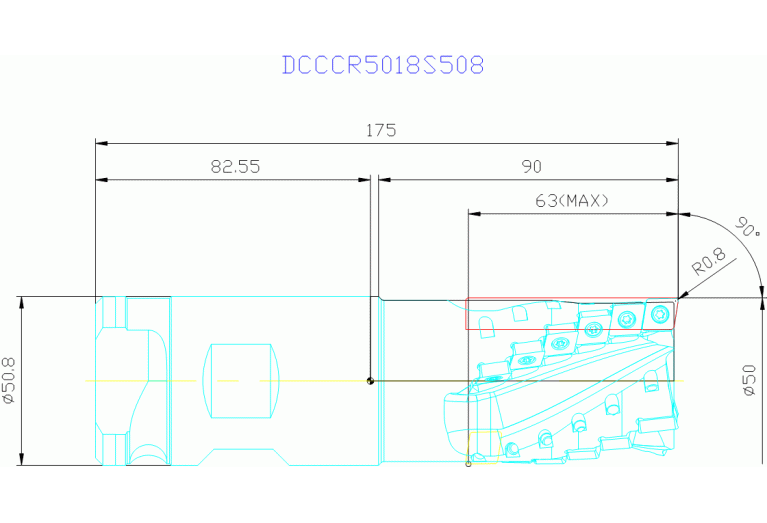

DCCCR5018S508

Артикул: DCCCR5018S508

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

63 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL05100105

FamilyProducts

endmill DCCCR with extended cutting edge

GAMF Rake angle radial

5.9 Degree

GAMP Rake angle axial

5.9 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

175 mm

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

CC09T3 3N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0510

LOC-03 DCONMS Diameter

50.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05100105

LPR Protruding length

90 mm

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

DCCCR5018S508

OAL Overall length

175 mm

Working process

FEC - Square shoulder milling,FNU - Groove milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
