Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill DCCCR4015S42

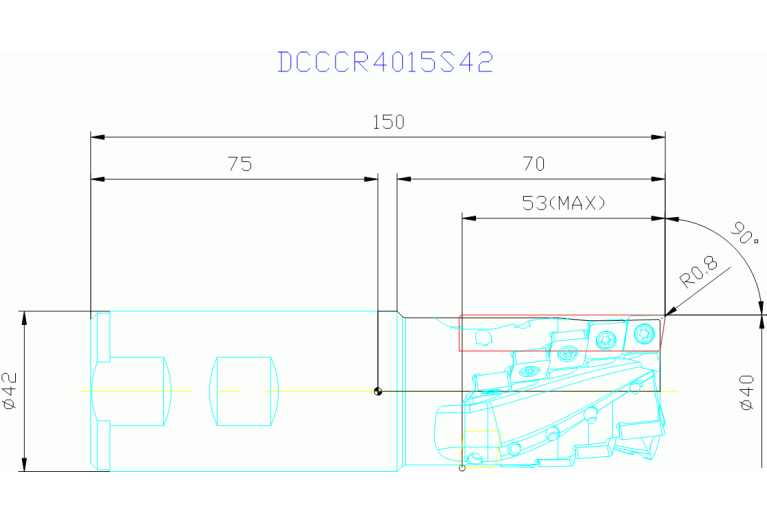

DCCCR4015S42

DCCCR4015S42

Mitsubishi Materials

Артикул: 101465

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

80 Degree

A1B Cutting edge angle major Pos. B

80 Degree

A2A Clearance angle major Pos. A

7 Degree

A2B Clearance angle major Pos. B

7 Degree

APMX Depth of cut maximum

53 mm

B1A Cutting edge length Pos. A

9.672 mm

B1B Cutting edge length Pos. B

9.672 mm

B3A Inscribed circle diameter Pos. A

9.525 mm

B3B Inscribed circle diameter Pos. B

9.525 mm

BLDA Tool style code Position A

3

BLDB Tool style code Position B

3

C1A Insert thickness Pos. A

3.97 mm

C1B Insert thickness Pos. B

3.97 mm

CCONMS Connection count machine side

1

CICT Cutting item count

15

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

D1B Corner radius Pos. B

0.8 mm

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL04200115

FamilyProducts

end mills

HAND Cutting direction

R - Right

ID Technical product number

101465

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISISO B Indicator for ISO cutting plate Pos.B

0

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

150 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0420

LOC-03 DCONMS Diameter

42 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04200115

LPR Protruding length

70 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

DCCCR4015S42

OAL Overall length

150 mm

Working process

No working processes available

WT Weight of item

1.3 kg

ZEFF Face effective cutting edge count

3

ZEFP Peripheral effective cutting edge count

3
