Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill APK D50-40-C32-22

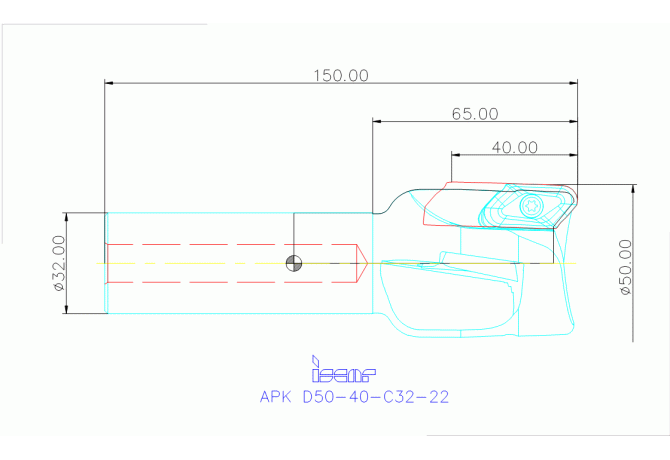

APK D50-40-C32-22

APK D50-40-C32-22

APK D50-40-C32-22

APK D50-40-C32-22

APK D50-40-C32-22

Iscar

Артикул: 3100771

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

11 Degree

APMX Depth of cut maximum

40 mm

B1A Cutting edge length Pos. A

29.7 mm

B1B Cutting edge length Pos. B

29.7 mm

B2A Insert width Pos. A

13.9 mm

B2B Insert width Pos. B

13.9 mm

B3A Inscribed circle diameter Pos. A

13.9 mm

B3B Inscribed circle diameter Pos. B

13.9 mm

BLDA Tool style code Position A

4

BLDB Tool style code Position B

4

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

6 mm

C1B Insert thickness Pos. B

6 mm

CCONMS Connection count machine side

2

CICT Cutting item count

4

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.5 mm

D1B Corner radius Pos. B

0.5 mm

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/2/2018

DIN

ZYL03200105

FamilyProducts

Extended Flute Endmills for Machining Aluminum

HAND Cutting direction

R - Right

ID Technical product number

3100771

Interface codes

J6 / J61

ISO

ZYL01G3200h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

150 mm

LH Head length

65 mm

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

APCR 220605-HM

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-AP2206 1N

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200105

Name Identifying order number

APK D50-40-C32-22

OAL Overall length

150 mm

RMPX Ramping angle maximum

10 Degree

TCDCONMS ISO-tolerance class shank diameter

h6

Working process

No working processes available

WT Weight of item

0.93 kg

ZEFF Face effective cutting edge count

2

ZEFP Peripheral effective cutting edge count

2
