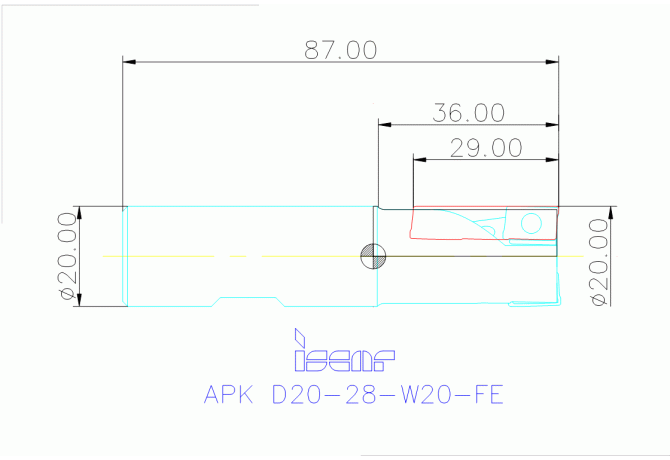

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill APK D20-28-W20-FE

APK D20-28-W20-FE

Артикул: 3100863

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

29 mm

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL02001005

FamilyProducts

Extended Flute Endmills Carrying APKT/R-10... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3100863

Interface codes

J6 / J61

ISO

ZYL10G2000h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LH Head length

36 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

APKT 1003PDR

LOC-01 ISO

IS$$2511983635727521

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-2511983635727521

LOC-02 BI Block index

LOC-02 MIID Master insert identification

APKT 1003PDR

LOC-02 ISO

IS$$2560042117698268

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-2560042117698268

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

LPR Protruding length

37 mm

MIID Master insert identification

APKT 1003PDR

Name Identifying order number

APK D20-28-W20-FE

OAL Overall length

87 mm

RMPX Ramping angle maximum

4 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.17 kg

ZEFP Peripheral effective cutting edge count
