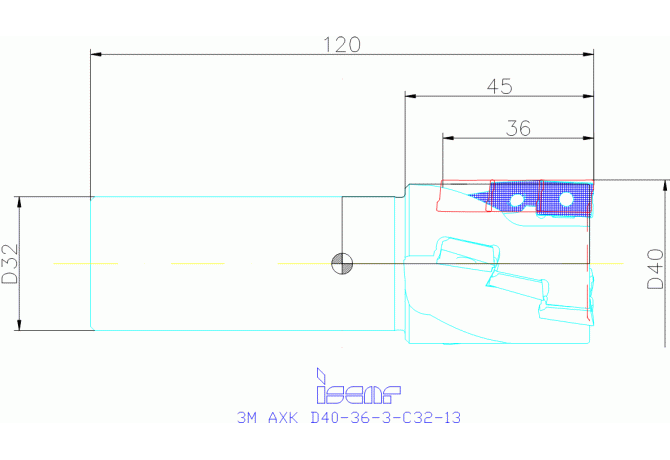

3M AXK D40-36-3-C32-13

Артикул: 3101834

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

36 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL03200105

FamilyProducts

Heavy Duty Extended Flute Endmills Carrying 3M AXKT 1304... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3101834

Interface codes

J6 / J61

ISO

ZYL01G3200h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

120 mm

LH Head length

45 mm

LOC-02 BI Block index

LOC-02 MIID Master insert identification

3M AXKT 1304PDR

LOC-02 ISO

IS$$577690723854166

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-577690723854166

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200105

LPR Protruding length

60 mm

Name Identifying order number

3M AXK D40-36-3-C32-13

OAL Overall length

120 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.84 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
