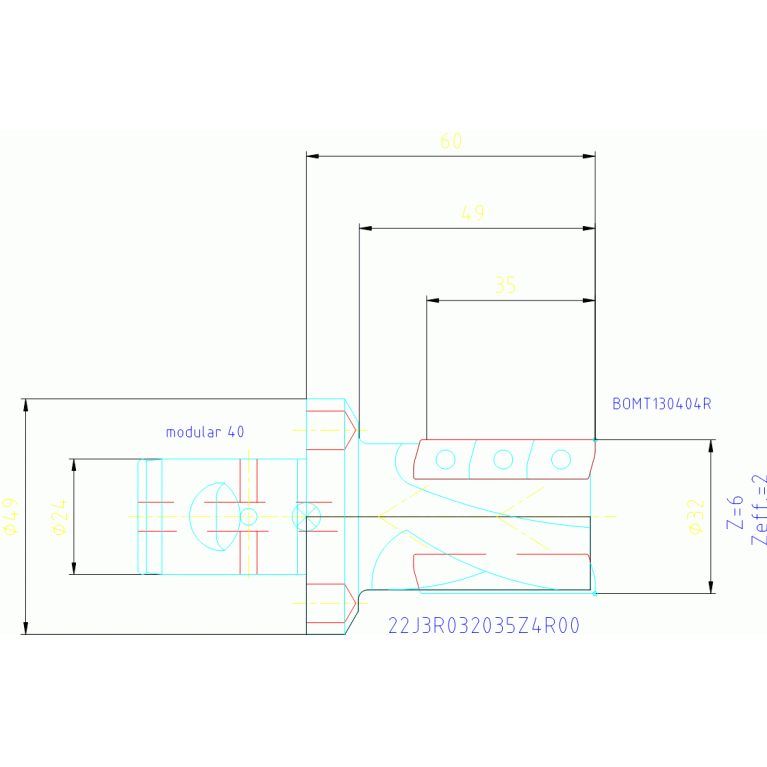

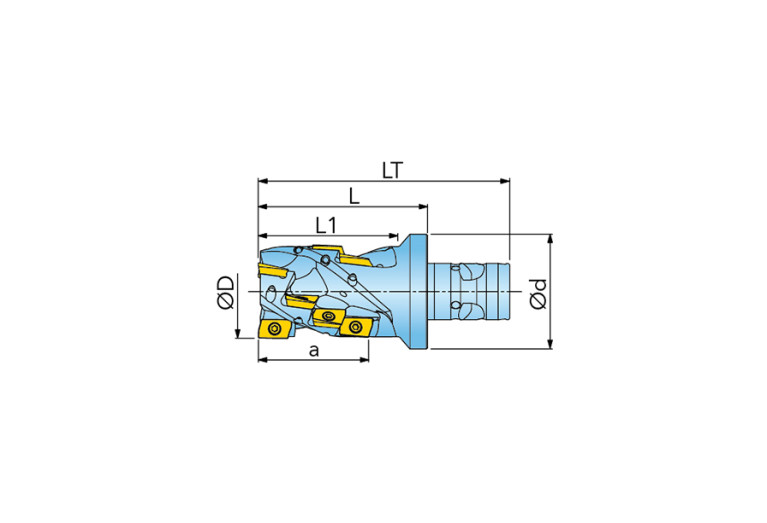

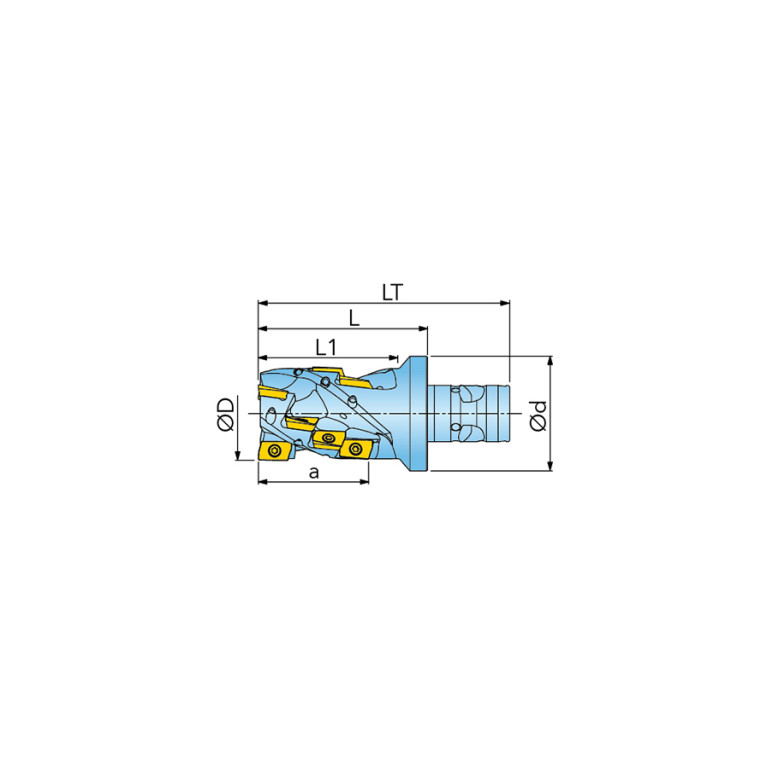

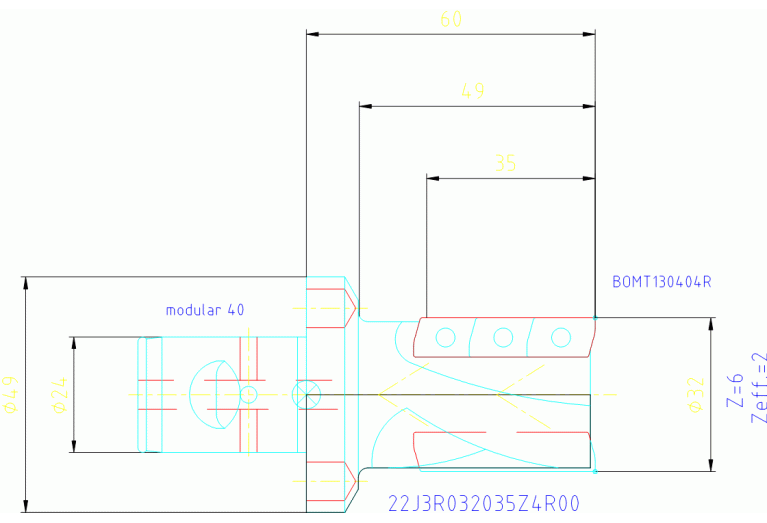

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill 22J3R032035Z4R00

22J3R032035Z4R00

22J3R032035Z4R00 22J3R032035Z4R00 22J3R032035Z4R00 22J3R032035Z4R00

22J3R032035Z4R00

Ingersoll
Артикул: 3074962
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
82 Degree
A1B Cutting edge angle major Pos. B
82 Degree
A2A Clearance angle major Pos. A
13 Degree
A2B Clearance angle major Pos. B
13 Degree
APMX Depth of cut maximum
35 mm
B1A Cutting edge length Pos. A
12.1 mm
B1B Cutting edge length Pos. B
12.1 mm
B2A Insert width Pos. A
8.1 mm
B2B Insert width Pos. B
8.1 mm
B3A Inscribed circle diameter Pos. A
8.1 mm
B3B Inscribed circle diameter Pos. B
8.1 mm
BLDA Tool style code Position A
5
BLDB Tool style code Position B
5
C1A Insert thickness Pos. A
4.85 mm
C1B Insert thickness Pos. B
4.85 mm
CCONMS Connection count machine side
2
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.4 mm
D1B Corner radius Pos. B
0.4 mm
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ITC04000215
FamilyProducts
Extended Flute End Mill 22J3R...Z
HAND Cutting direction
R - Right
ID Technical product number
3074962
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ITC Ingersoll Tool connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
49 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ITC04000215
LPR Protruding length
60 mm
LU Usable length
49 mm
Name Identifying order number
22J3R032035Z4R00
OAL Overall length
95 mm
RMPX Ramping angle maximum
5 Degree
Working process
No working processes available
WT Weight of item
0.38 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
