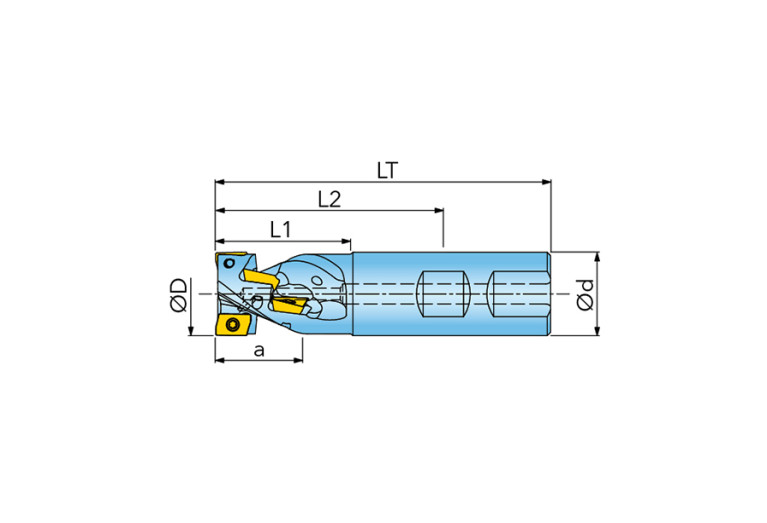

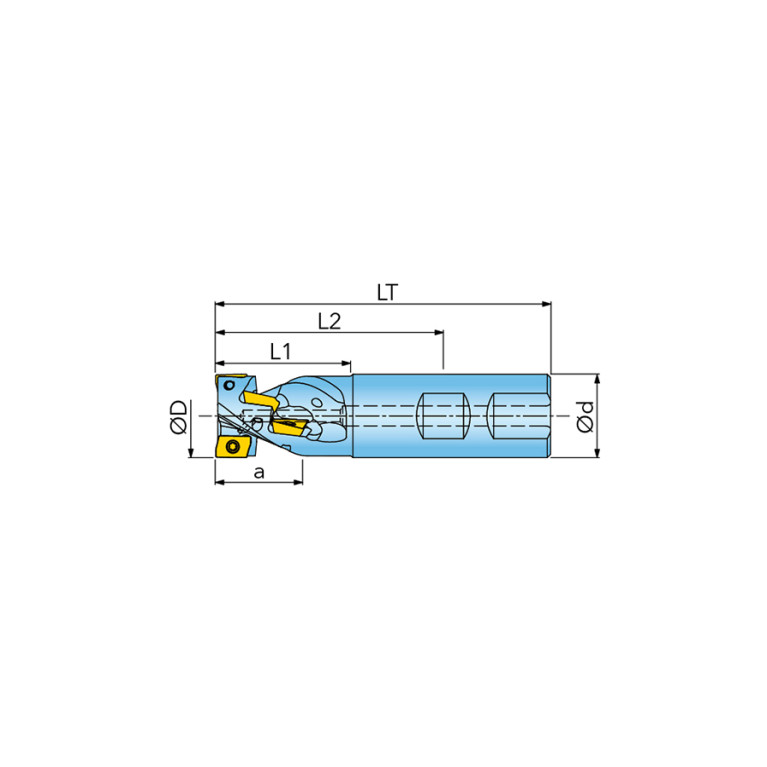

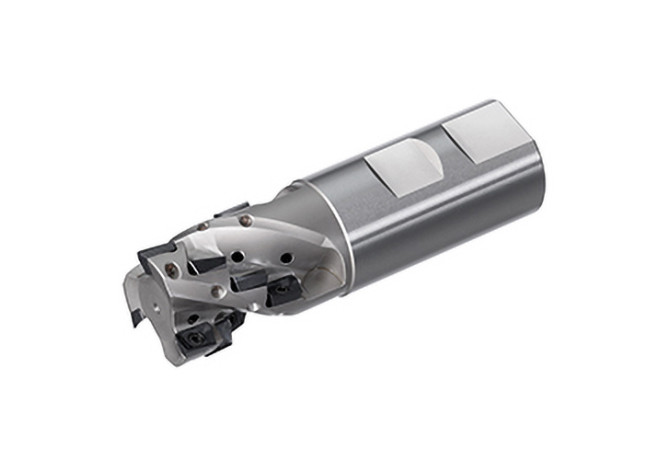

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill 22J3P032034W6R00

22J3P032034W6R00

Артикул: 3027511

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ZYL03201015

FamilyProducts

Extended Flute End Mill 22J3P...W

HAND Cutting direction

R - Right

ID Technical product number

3027511

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

Name Identifying order number

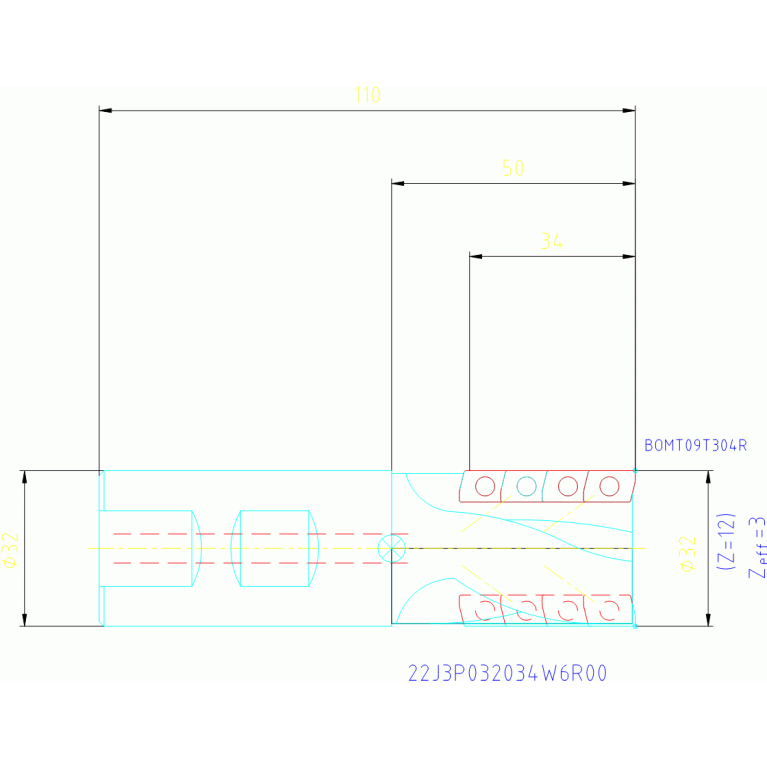

22J3P032034W6R00

OAL Overall length

110 mm

RMPX Ramping angle maximum

2.8 Degree

Working process

FEC - Square shoulder milling,FNU - Groove milling

WT Weight of item

0.52 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
