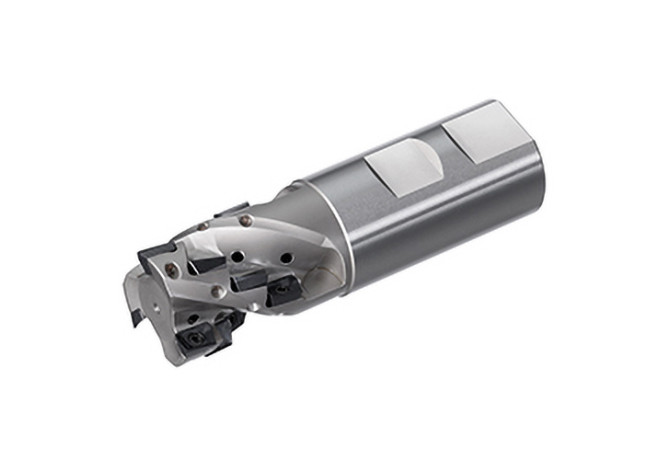

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill 22J3P025026W5R00

22J3P025026W5R00

Артикул: 3027510

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

26 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ZYL02501015

FamilyProducts

Extended Flute End Mill 22J3P...W

HAND Cutting direction

R - Right

ID Technical product number

3027510

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501015

LPR Protruding length

44 mm

LU Usable length

40 mm

Name Identifying order number

22J3P025026W5R00

OAL Overall length

100 mm

RMPX Ramping angle maximum

4.4 Degree

Working process

FEC - Square shoulder milling,FNU - Groove milling

WT Weight of item

0.28 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
