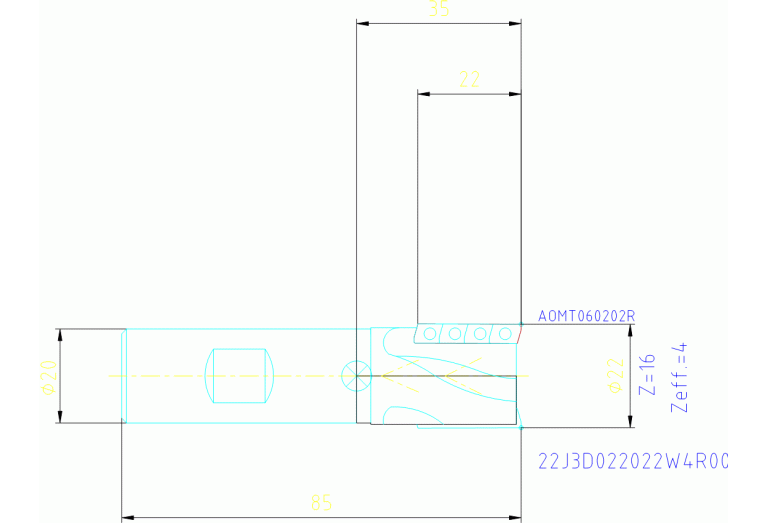

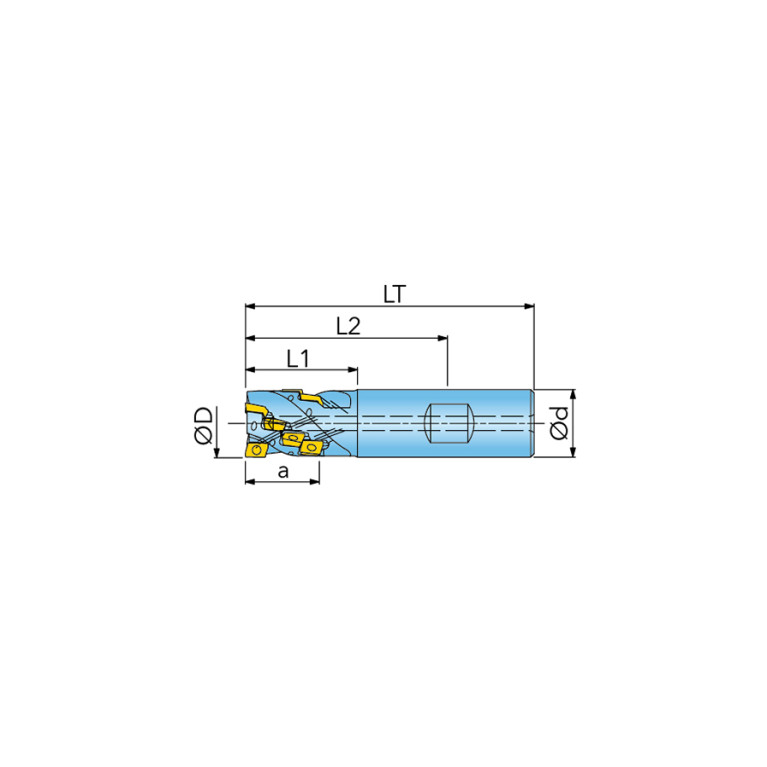

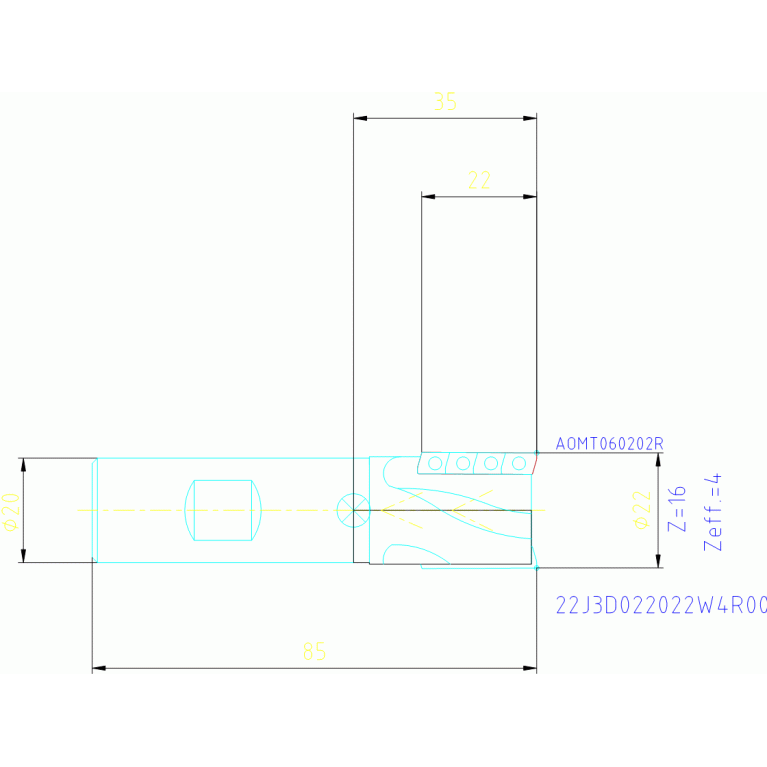

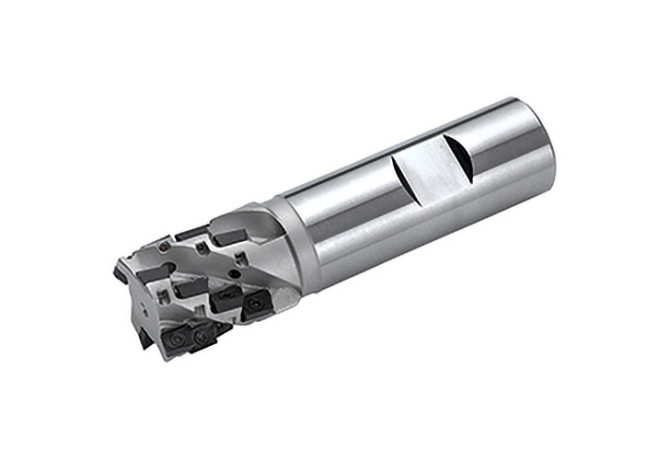

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill 22J3D022022W4R00

22J3D022022W4R00

22J3D022022W4R00 22J3D022022W4R00 22J3D022022W4R00 22J3D022022W4R00

22J3D022022W4R00

Ingersoll
Артикул: 3018576
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
22 mm
CCONMS Connection count machine side
1
CICT Cutting item count
20
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
22 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL02001015
FamilyProducts
Extended Flute End Mill 22J3D...W
HAND Cutting direction
R - Right
ID Technical product number
3018576
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001015
LPR Protruding length
32 mm
Name Identifying order number
22J3D022022W4R00
OAL Overall length
85 mm
RMPX Ramping angle maximum
2.3 Degree
Working process
No working processes available
WT Weight of item
0.17 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
