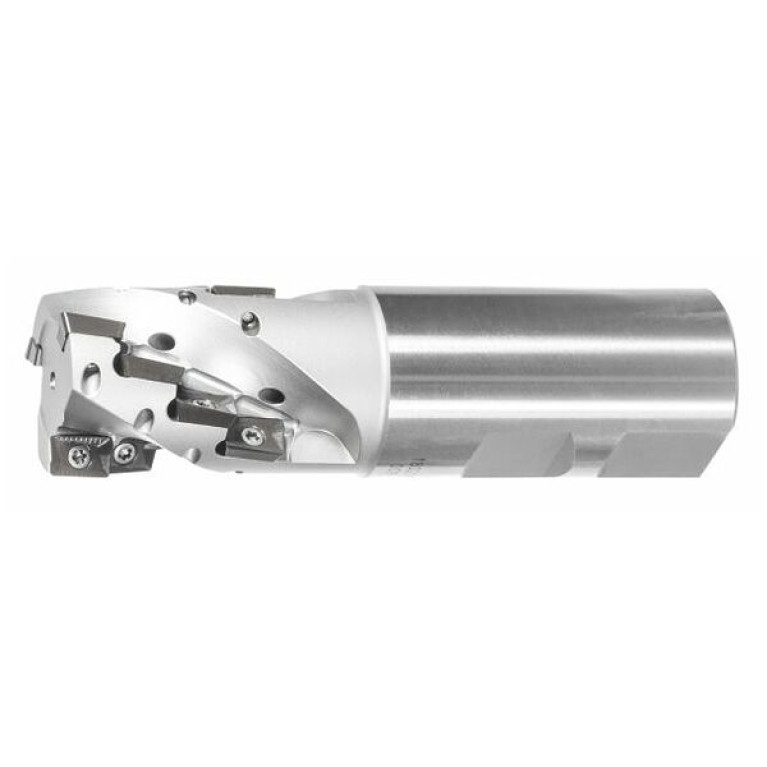

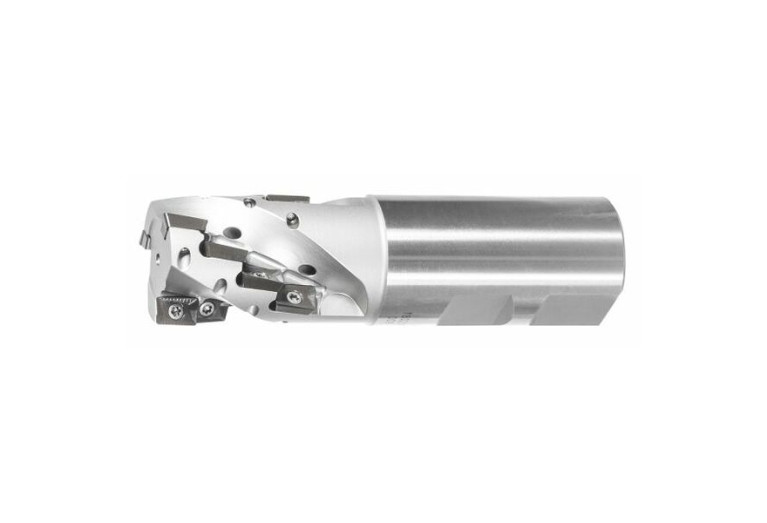

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill 215860 32/3

215860 32/3

215860 32/3

Hoffmann Group

Артикул: 215860 32/3

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

11 Degree

APMX Depth of cut maximum

38 mm

BD Body diameter

30.5 mm

BLDA Tool style code Position A

5

BLDB Tool style code Position B

5

CCONMS Connection count machine side

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL03201015

DN Neck diameter

30.7 mm

FamilyProducts

GARANT 90° indexable end mill MTC

GAMF Rake angle radial

8 Degree

GAMP Rake angle axial

-9.5 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LH Head length

54 mm

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

AP*T1003**

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

AP1003043R

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

LPR Protruding length

54 mm

LU Usable length

38 mm

Name Identifying order number

215860 32/3

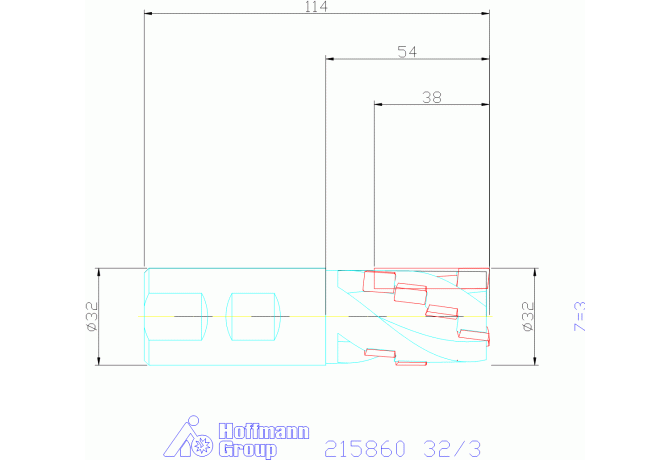

OAL Overall length

114 mm

TCDCONMS ISO-tolerance class shank diameter

h6

Working process

FEC - Square shoulder milling

WT Weight of item

0.5 kg

ZEFP Peripheral effective cutting edge count

3
