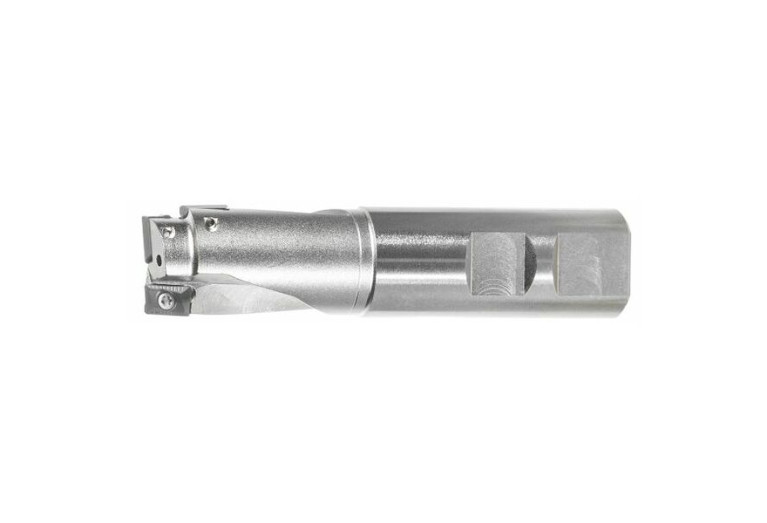

Главная Каталог продукции Toolunited 14 307-07 - Non-centre cutting multiple rows end mill 215840 20/2

215840 20/2

215840 20/2 215840 20/2 215840 20/2

215840 20/2

Hoffmann Group
Артикул: 215840 20/2
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
11 Degree
APMX Depth of cut maximum
17 mm
BLDA Tool style code Position A
5
BLDB Tool style code Position B
5
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL02001015
DN Neck diameter
18.7 mm
FamilyProducts
GARANT 90° high-performance end mill MTC
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LH Head length
35 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
AP*T1003**
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
AP1003043R
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001015
LPR Protruding length
35 mm
LS Shank length
55 mm
LU Usable length
17 mm
Name Identifying order number
215840 20/2

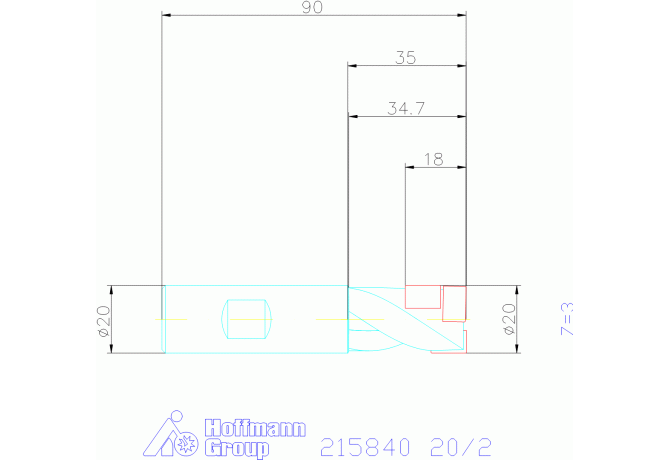

OAL Overall length
90 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FPL - Face milling
WT Weight of item
0.18 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
