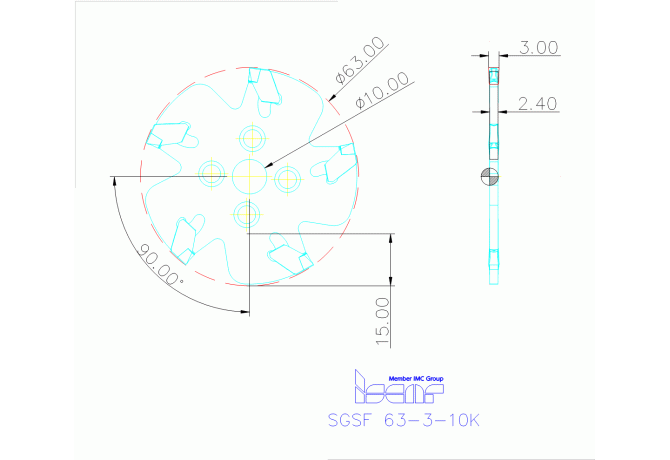

SGSF 63-3-10K
SGSF 63-3-10K
Артикул:
2301357
В наличии
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
5
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CWN Cutting width minimum
2.7 mm
CWX Cutting width maximum
3.53 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
DIN
FDA01000105
FamilyProducts
Slitting Cutters Carrying Self-Clamped Inserts
HAND Cutting direction
R - Right
ID Technical product number
2301357
Interface codes
J6 / J61
ISO
FDA01G1000H$07
ISYC Subclass
308-09 - Saw blade / slitting cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA01G1000H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01000105
MILTTY Mill tool type ISO
D - Slot or separating cutter
Name Identifying order number
SGSF 63-3-10K
RPMX Rotational speed maximum
1260 1/min
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
0.04 kg
ZEFP Peripheral effective cutting edge count
5
