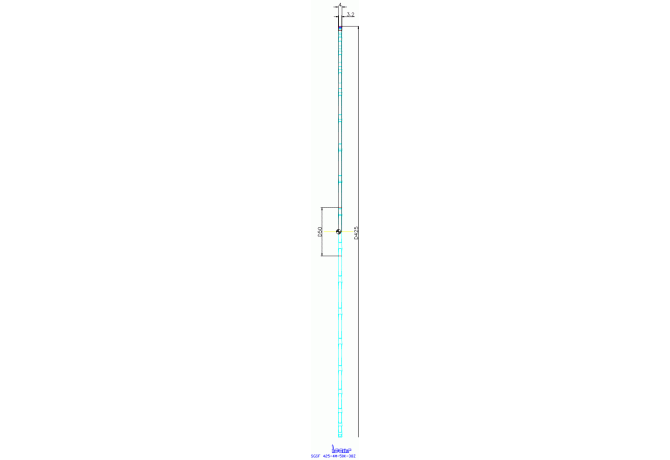

SGSF 425-4M-50K-38Z
SGSF 425-4M-50K-38Z
Артикул:
2398630
В наличии
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
38
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CWN Cutting width minimum
3.54 mm
CWX Cutting width maximum
4.52 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
425 mm
DCP Data chip provision
0 - Without data chip
DIN
FDA05000105
FamilyProducts
Slitting Cutters Carrying Self-Clamped Inserts
HAND Cutting direction
R - Right
ID Technical product number
2398630
Interface codes
J6 / J61
ISO
FDA01G5000H$07
ISYC Subclass
308-09 - Saw blade / slitting cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA01G5000H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA05000105
MILTTY Mill tool type ISO
D - Slot or separating cutter
Name Identifying order number
SGSF 425-4M-50K-38Z
RPMX Rotational speed maximum
190 1/min
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
3.27 kg
ZEFP Peripheral effective cutting edge count
38
