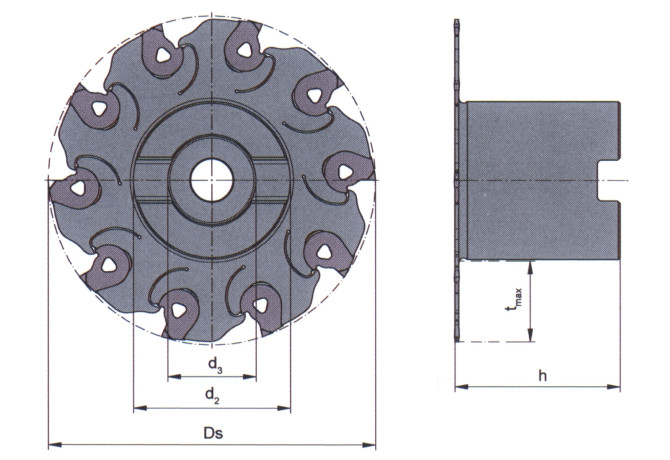

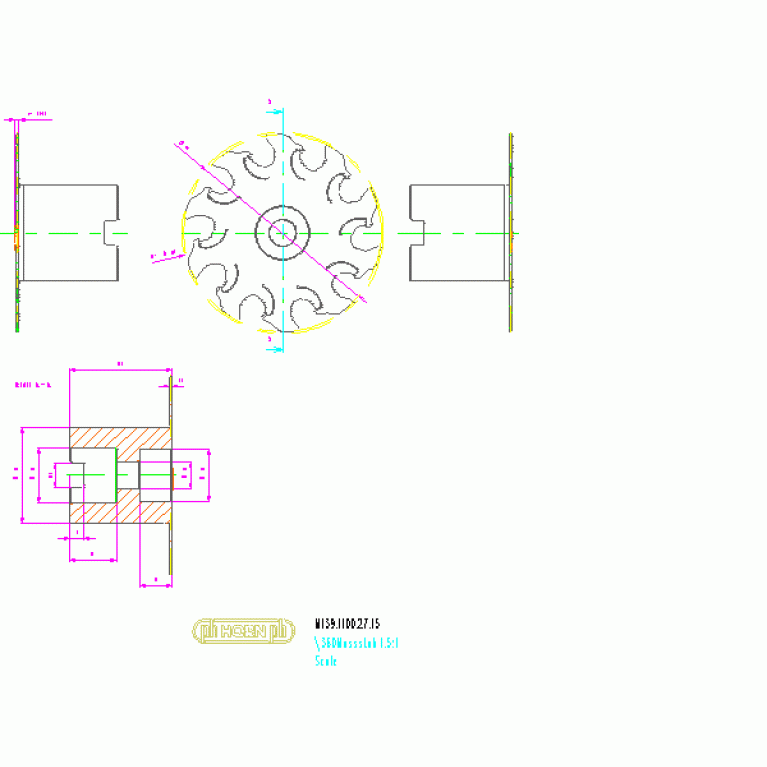

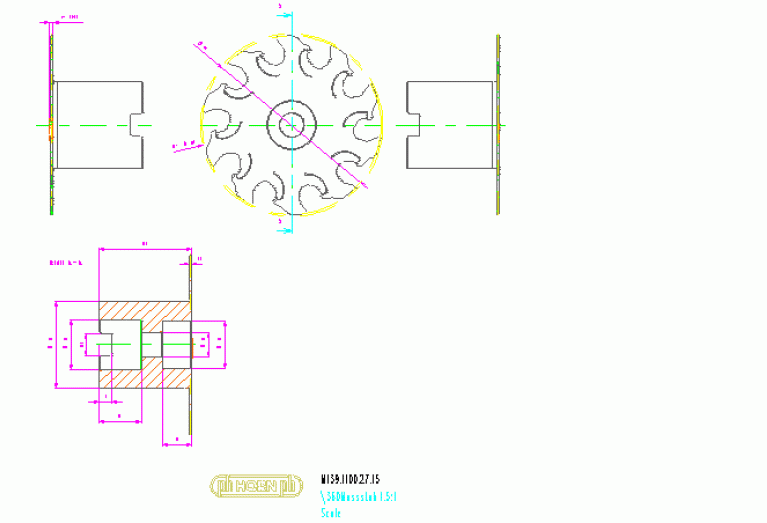

Главная Каталог продукции Toolunited 14 308-06 - Half-side slot milling cutter M139.1100.27.15

M139.1100.27.15

M139.1100.27.15 M139.1100.27.15 M139.1100.27.15

M139.1100.27.15

Paul Horn
Артикул: M13911002715
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
25 mm
CICT Cutting item count
10
COMPC Company code
HORN - Paul Horn
DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/15/2014
DHUB Hub diameter
48 mm
DIN
FDA02700105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
SLOTTING CUTTER Type M 139 for use with insert
HAND Cutting direction
R - Right
ID Technical product number
M13911002715
Interface codes
J6 /
ISYC Subclass
308-06 - Half-side slot milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02700105
Name Identifying order number
M139.1100.27.15
OAL Overall length
50.6 mm
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
10
