Главная Каталог продукции Toolunited 14 308-06 - Half-side slot milling cutter F51 71101

F51 71101

F51 71101 F51 71101

F51 71101

Komet Group
Артикул: 1481391
В наличии
В корзину
Описание
Характеристики
BI Block index
1
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
0 - Without coolant exit

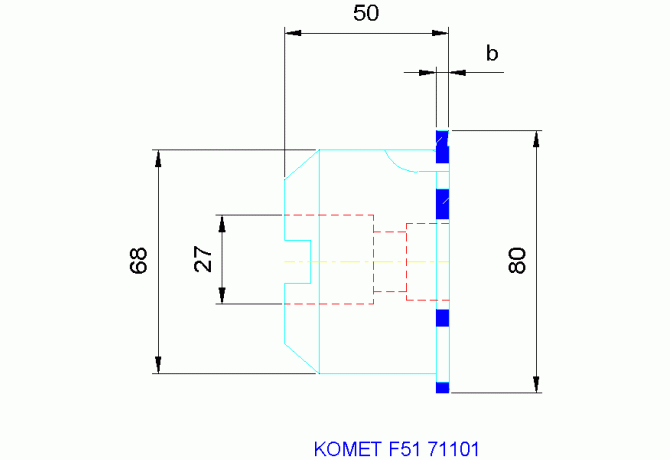

DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
FDA02202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Zirkularfräser Ø 80
HAND Cutting direction
R - Right
ID Technical product number
1481391
Interface codes
J6 /
ISYC Subclass
308-06 - Half-side slot milling cutter
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
66753
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202210
Name Identifying order number
F51 71101
OAL Overall length
50 mm
STDNO Standard
DIN 6358 A
Working process
No working processes available
WT Weight of item
1.25 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
