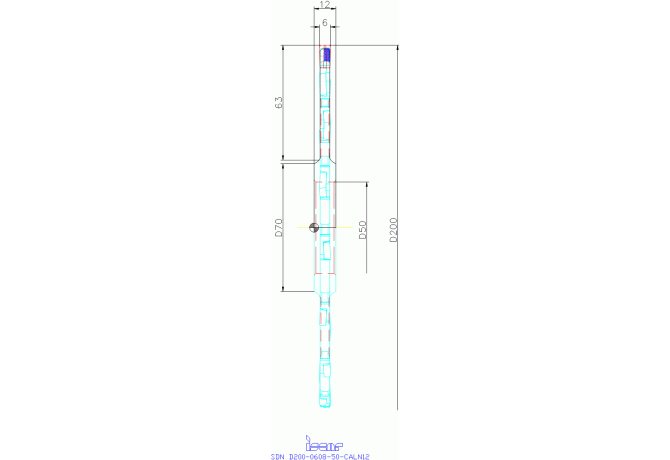

SDN D200-0608-50-CALN12

Артикул: 3103970

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

63 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CWN Cutting width minimum

6 mm

CWX Cutting width maximum

8.2 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

200 mm

DCP Data chip provision

0 - Without data chip

DHUB Hub diameter

70 mm

DIN

FDA05000105

FamilyProducts

Full Slot Disk Type Slotting Cutters with Cartridges Carrying LNET 12... Tangentially Mounted Inserts

HAND Cutting direction

R - Right

ID Technical product number

3103970

Interface codes

J6 / J61

ISO

FDA01G5000H$07

ISYC Subclass

308-05 - Full-side slot milling cutter

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03 ISO

FDA01G5000H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA05000105

MILTTY Mill tool type ISO

C - Disc mill - three side cutting

Name Identifying order number

SDN D200-0608-50-CALN12

OAL Overall length

12 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

1.01 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
