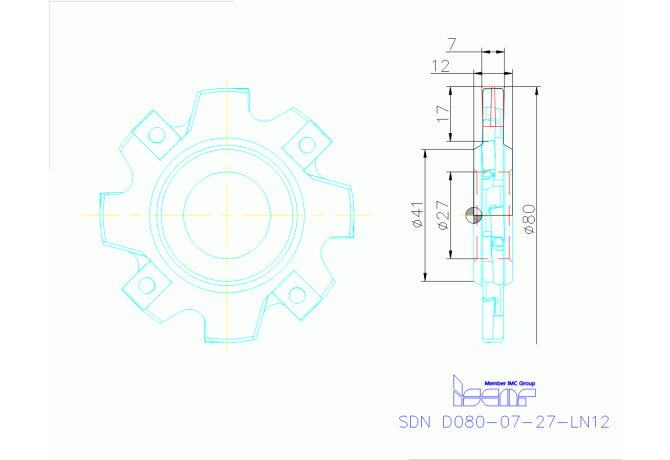

SDN D080-07-27-LN12
SDN D080-07-27-LN12
Артикул:
3102975
В наличии
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
17 mm
CICT Cutting item count
12
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CWN Cutting width minimum
7 mm
CWX Cutting width maximum
8.5 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
DHUB Hub diameter
41 mm
DIN
FDA02700105
FamilyProducts
Full Slot Disk Type Slotting Cutters Carrying LNET 12 Tangentially Mounted Inserts
HAND Cutting direction
R - Right
ID Technical product number
3102975
Interface codes
J6 / J61
ISO
FDA01G2700H$07
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA01G2700H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02700105
MILTTY Mill tool type ISO
C - Disc mill - three side cutting
Name Identifying order number
SDN D080-07-27-LN12
OAL Overall length
12 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
0.18 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
