Главная Каталог продукции Toolunited 14 308-05 - Full-side slot milling cutter FDN D200-08-40-LN12

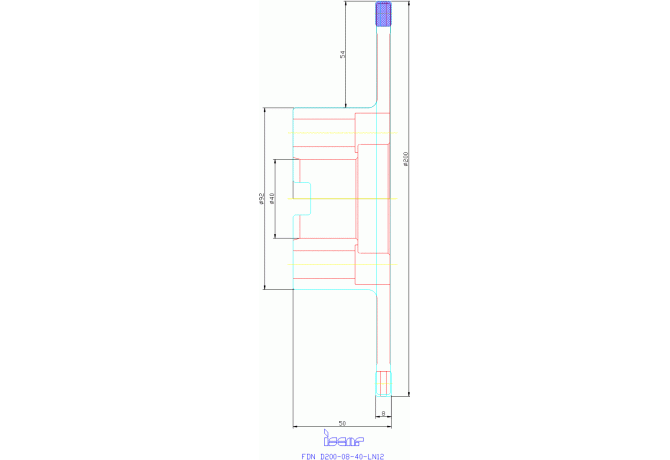

FDN D200-08-40-LN12

Артикул: 3102815

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

51.5 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CWN Cutting width minimum

8 mm

CWX Cutting width maximum

10 mm

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

200 mm

DCP Data chip provision

0 - Without data chip

DHUB Hub diameter

92 mm

DIN

SPK04000103

FamilyProducts

Full Slot Cutters Carrying LNET 12... Tangentially Mounted Inserts

HAND Cutting direction

R - Right

ID Technical product number

3102815

Interface codes

J6 / J61

ISO

SPK01G4000H$07

ISYC Subclass

308-05 - Full-side slot milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 CCTMS Connection code type

SPK Spindle nose mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03 ISO

SPK01G4000H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK04000103

MILTTY Mill tool type ISO

C - Disc mill - three side cutting

Name Identifying order number

FDN D200-08-40-LN12

OAL Overall length

50 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

2.63 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
