Главная Каталог продукции Toolunited 14 308-05 - Full-side slot milling cutter FDN D125-07-32-LN12

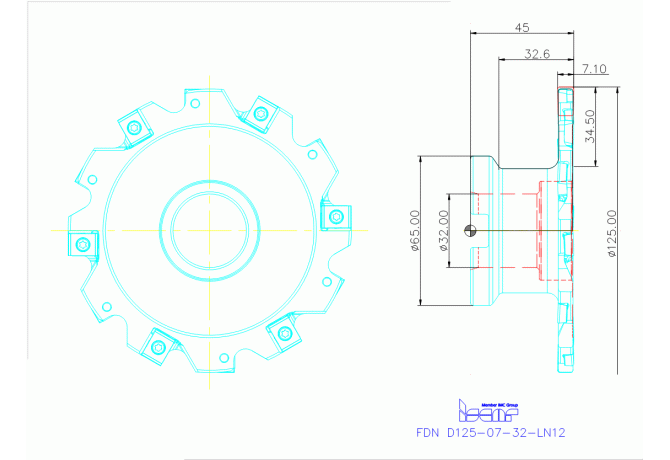

FDN D125-07-32-LN12

FDN D125-07-32-LN12 FDN D125-07-32-LN12

FDN D125-07-32-LN12

Iscar
Артикул: 3102984
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
34.5 mm
CICT Cutting item count
18
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CWN Cutting width minimum
7 mm
CWX Cutting width maximum
8.5 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
DHUB Hub diameter
65 mm
DIN
FDA03200205
FamilyProducts
Full Slot Cutters Carrying LNET 12... Tangentially Mounted Inserts
HAND Cutting direction
R - Right
ID Technical product number
3102984
Interface codes
J6 / J61
ISO
FDA02G3200H$07
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA02G3200H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03200205
MILTTY Mill tool type ISO
C - Disc mill - three side cutting
Name Identifying order number
FDN D125-07-32-LN12
OAL Overall length
45 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
0.86 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
