Главная Каталог продукции Toolunited 14 308-05 - Full-side slot milling cutter F4153.UBN31.127.Z06.10R

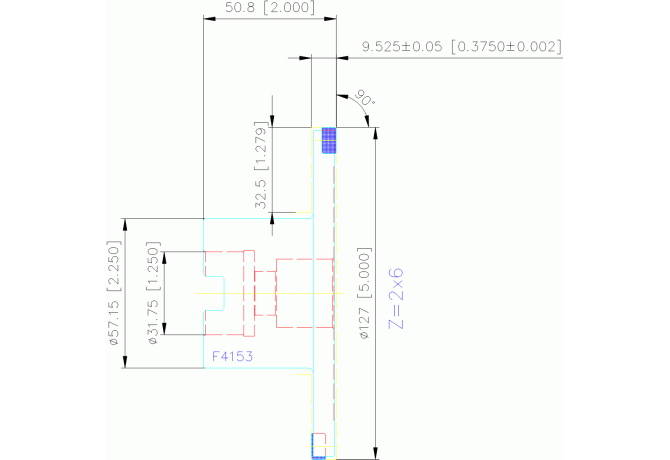

F4153.UBN31.127.Z06.10R

F4153.UBN31.127.Z06.10R F4153.UBN31.127.Z06.10R

F4153.UBN31.127.Z06.10R

Walter
Артикул: 5677497
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
32.5 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CWN Cutting width minimum
9.525 mm
CWX Cutting width maximum
9.525 mm
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
26 mm
DC Cutting diameter
127 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
57.15 mm
DIN
FDA12501220
F24 Cutting item count per mounting layer
12
FamilyProducts
Slotting cutters for ‌slot milling F4153
HAND Cutting direction
R - Right
ID Technical product number
5677497
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
FDA12S1250$$$$
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
FDA12S1250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA12501220
Name Identifying order number
F4153.UBN31.127.Z06.10R
OAL Overall length
50.8 mm
RPMX Rotational speed maximum
10900 1/min
Working process
FNU - Groove milling,FPL - Face milling
WT Weight of item
1.3 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
