F2252.B.125.Z05.09.S684
F2252.B.125.Z05.09.S684
Артикул:
5000684
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BLDA Tool style code Position A
3
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
28 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CWN Cutting width minimum
9 mm
CWX Cutting width maximum
10 mm
CXSC Coolant exit style code
0 - Without coolant exit

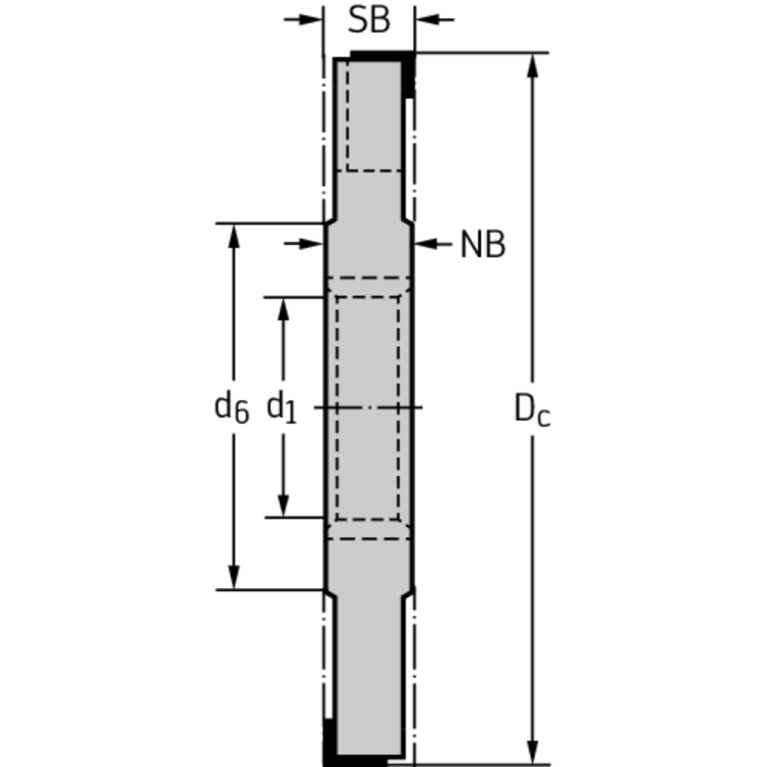

DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
65 mm
DIN
FDA04000100
F24 Cutting item count per mounting layer
10
FamilyProducts

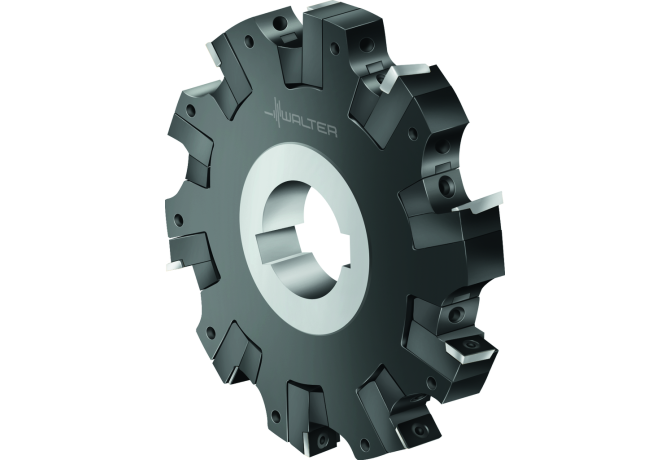

Slotting cutters for slot milling F2252
HAND Cutting direction
N - Neutral
ID Technical product number
5000684
Interface codes
J6 / J61
ISO
FDA01G4000$$$$
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
FDA01G4000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04000100
Name Identifying order number
F2252.B.125.Z05.09.S684
OAL Overall length
9 mm
RPMX Rotational speed maximum
5400 1/min
Working process
FNU - Groove milling,FPL - Face milling
WT Weight of item
0.629 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
