4.91204-133
4.91204-133
Артикул:
4.91204-133
В наличии
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
32 mm
COMPC Company code
KH - Kennametal
CWX Cutting width maximum
18.9 mm
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DHUB Hub diameter
58 mm
DIN
KH-FWDF3 21140
F24 Cutting item count per mounting layer
5
FamilyProducts

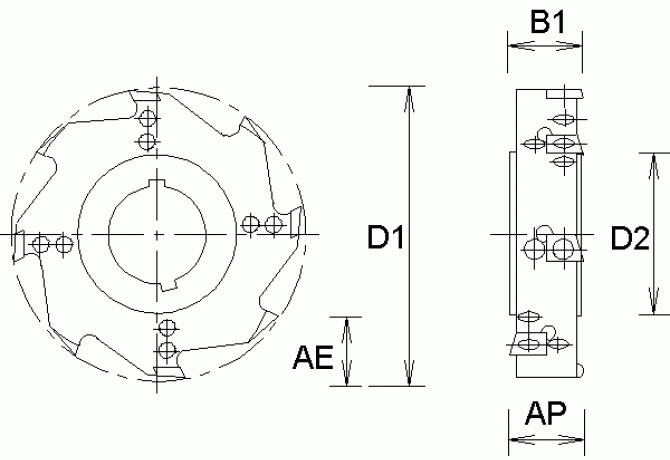

FULL SIDE AND FACE MILL 4.215..
ID Technical product number
4.91204-133
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KH-FWDF3 21140
Name Identifying order number
4.91204-133
Working process
No working processes available
WT Weight of item
1.4 kg
