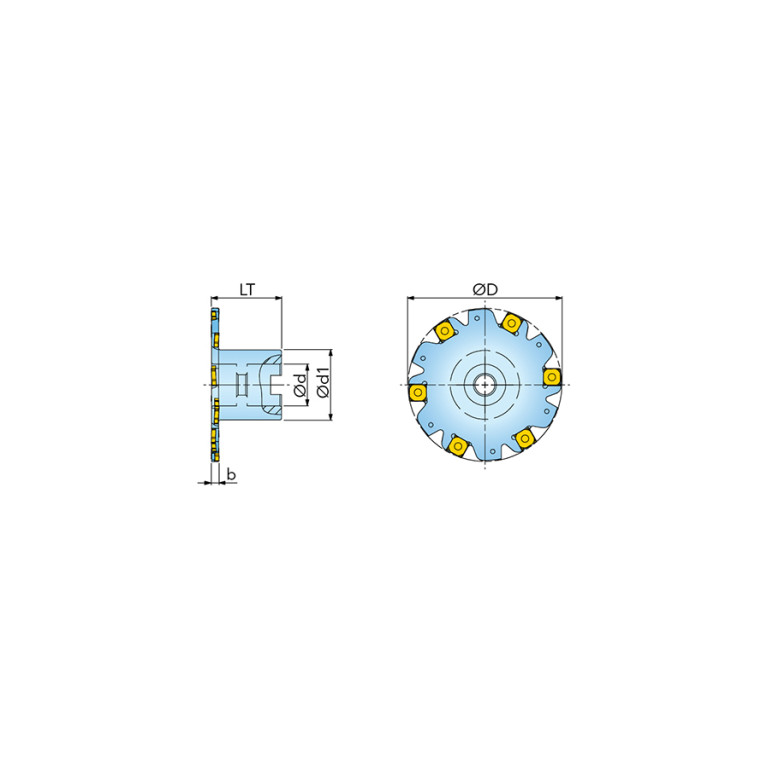

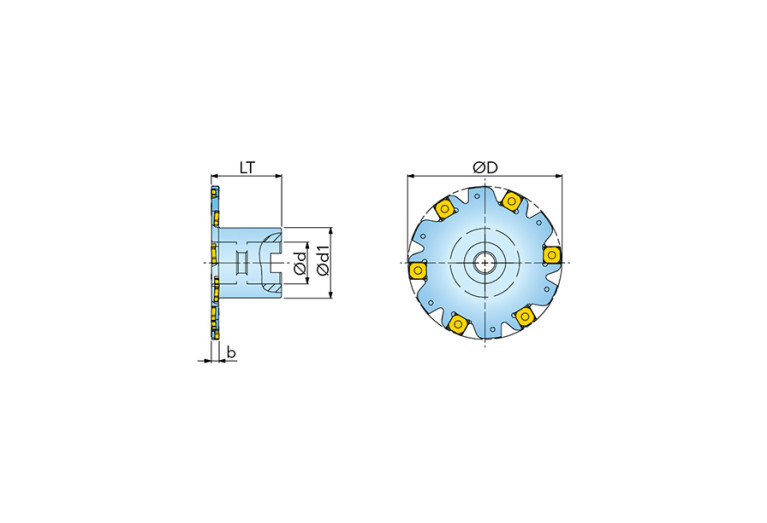

Главная Каталог продукции Toolunited 14 308-05 - Full-side slot milling cutter 38L5H080010F1R00

38L5H080010F1R00

38L5H080010F1R00 38L5H080010F1R00 38L5H080010F1R00 38L5H080010F1R00

38L5H080010F1R00

Ingersoll
Артикул: 3018596
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
CCONMS Connection count machine side
1
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
10 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DHUB Hub diameter
38 mm
DIN
FDA02202200
FamilyProducts
Slot Mill 38L5...F 4-10 mm cutting width
HAND Cutting direction
R - Right
ID Technical product number
3018596
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SDE-43-201
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-3392
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202200
Name Identifying order number

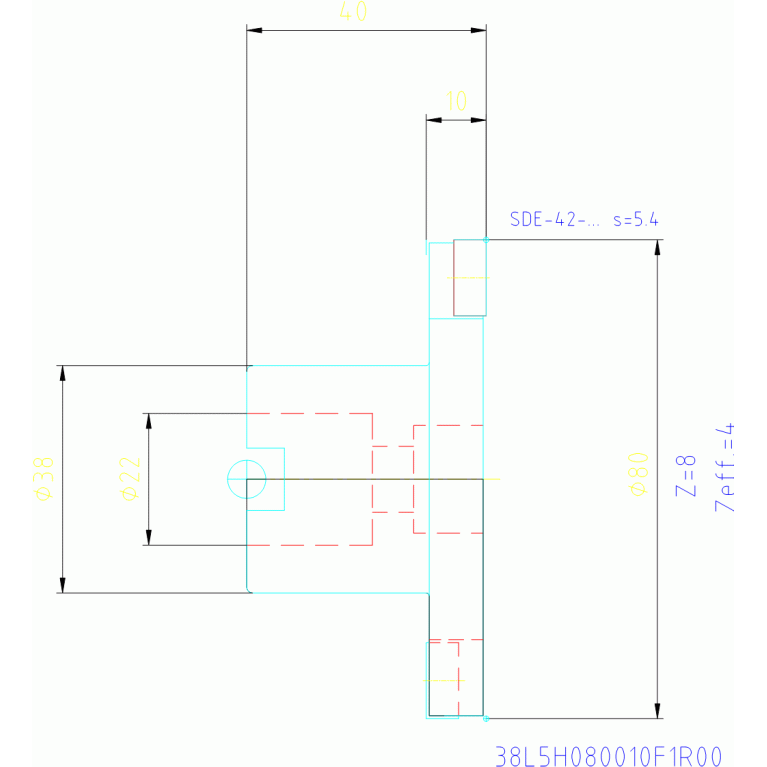

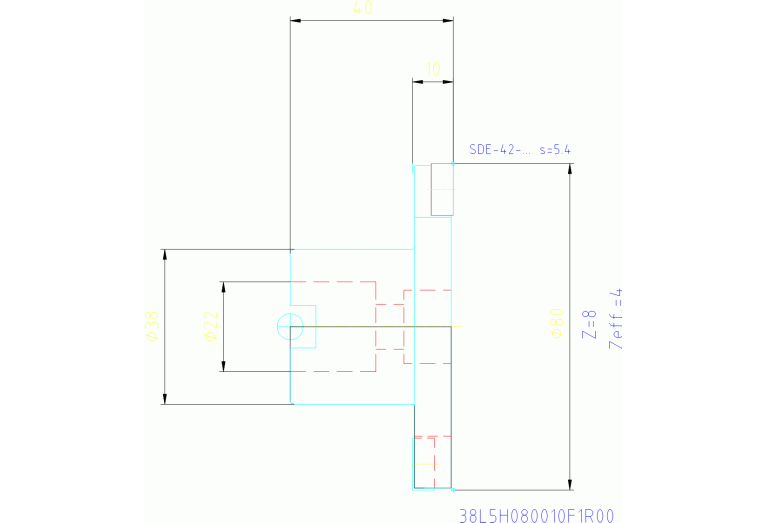

38L5H080010F1R00
OAL Overall length
40 mm
Working process
No working processes available
WT Weight of item
0.4 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
