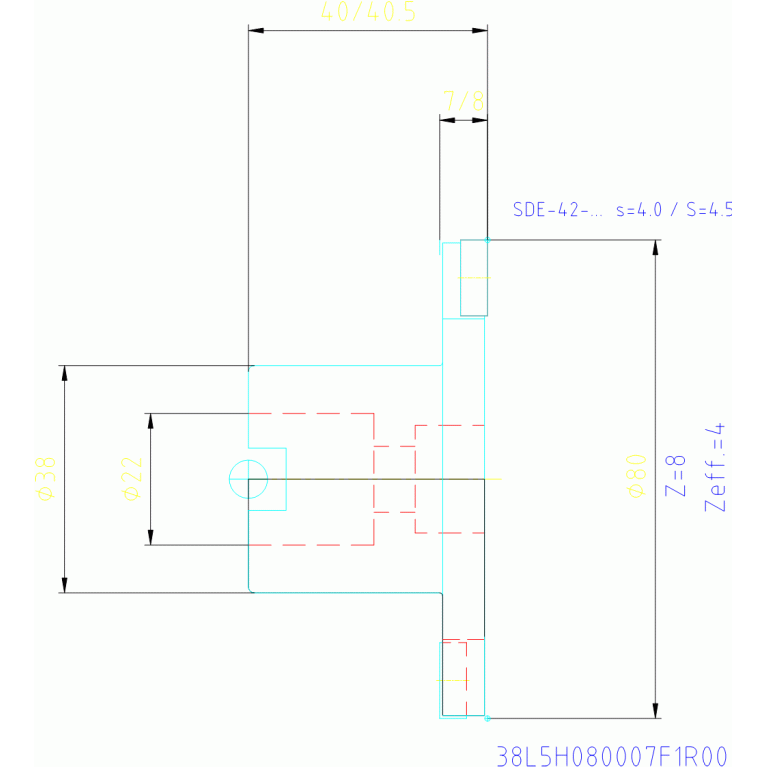

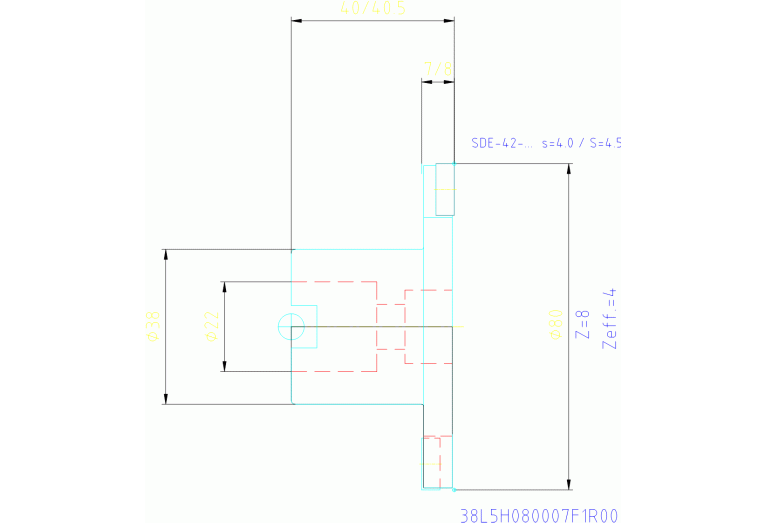

38L5H080007F1R00
38L5H080007F1R00
Артикул:
3040453
В наличии
Характеристики
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
CCONMS Connection count machine side
1
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
7 mm
CWX Cutting width maximum
8 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DHUB Hub diameter
38 mm
DIN
FDA02202200
FamilyProducts

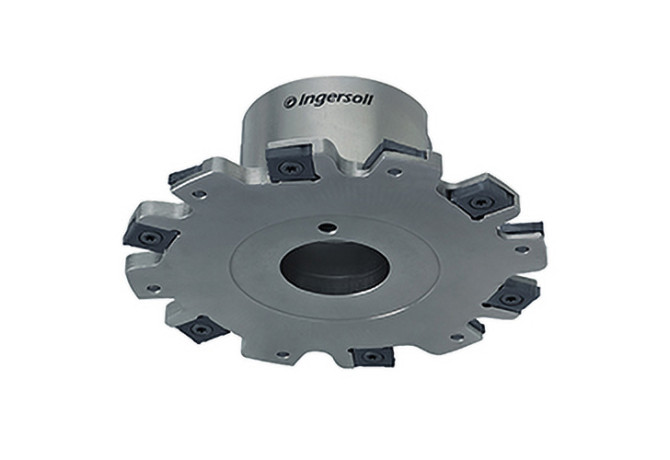

Slot Mill 38L5...F 4-10 mm cutting width
HAND Cutting direction
R - Right
ID Technical product number
3040453
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202200
Name Identifying order number
38L5H080007F1R00
OAL Overall length
40.5 mm
Working process
No working processes available
WT Weight of item
0.37 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
