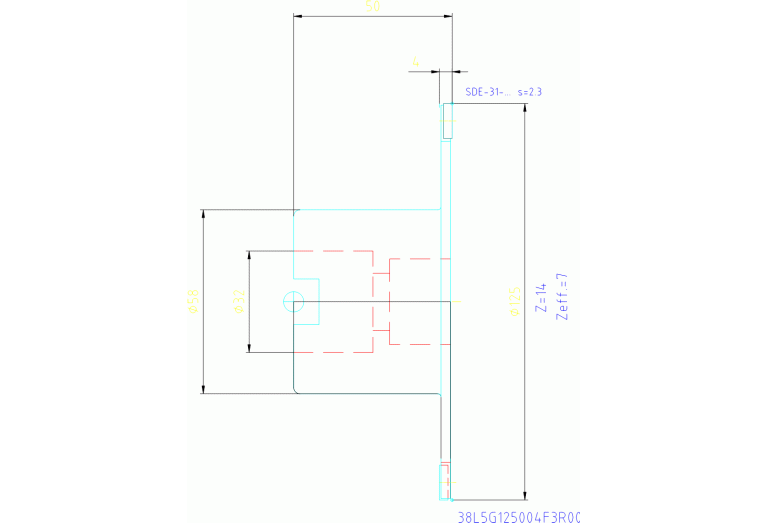

Главная Каталог продукции Toolunited 14 308-05 - Full-side slot milling cutter 38L5G125004F3R00

38L5G125004F3R00

38L5G125004F3R00 38L5G125004F3R00 38L5G125004F3R00 38L5G125004F3R00

38L5G125004F3R00

Ingersoll
Артикул: 3080244
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
CCONMS Connection count machine side
1
CICT Cutting item count
14
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
4 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DHUB Hub diameter
58 mm
DIN
FDA03202200
FamilyProducts
Slot Mill 38L5...F 4-10 mm cutting width
HAND Cutting direction
R - Right
ID Technical product number
3080244
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SDE-31-201
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-3387
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202200
Name Identifying order number
38L5G125004F3R00
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
0.99 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
