218560 125L
218560 125L
Артикул:
218560 125L
В наличии
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
4 mm
CICT Cutting item count
12
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CWN Cutting width minimum
4 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/11/2017
DHUB Hub diameter
59 mm
DIN
FDA03202200
FamilyProducts

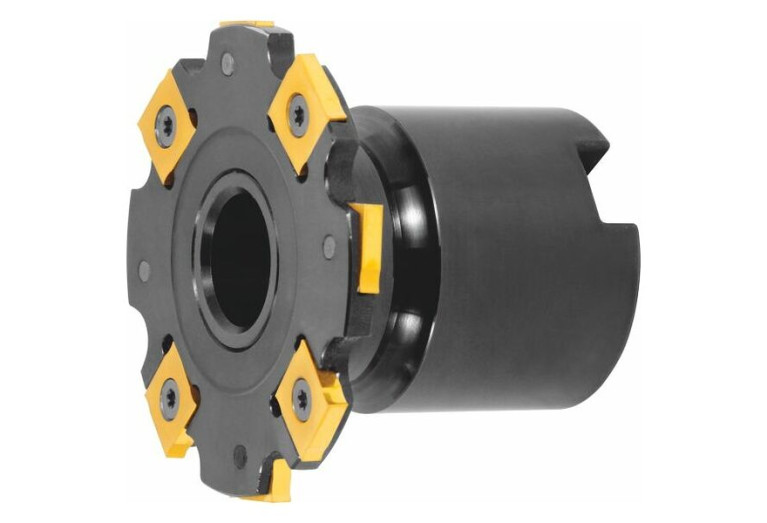

GARANT Side milling cutter
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SNHX1102**
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SN1102007N
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202200
Name Identifying order number
218560 125L
OAL Overall length
50 mm
Working process
FNU - Groove milling,FTR - Slot cutting
WT Weight of item
0.98 kg
ZEFP Peripheral effective cutting edge count
6
