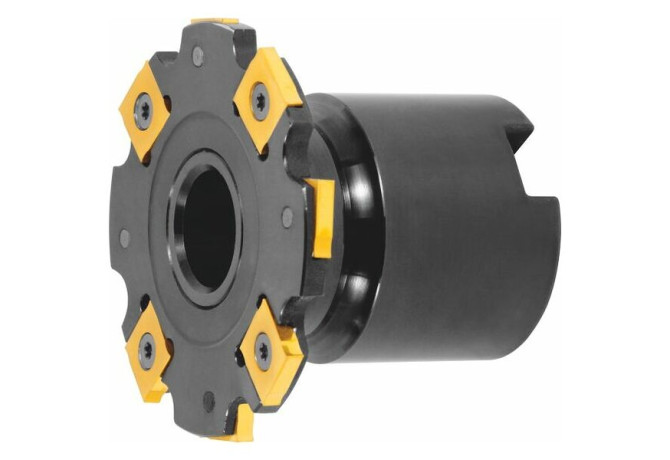

Главная Каталог продукции Toolunited 14 308-05 - Full-side slot milling cutter 218560 125

218560 125

218560 125 218560 125 218560 125

218560 125

Hoffmann Group
Артикул: 218560 125
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
CCONMS Connection count machine side
1
CDX Cutting depth maximum
23.7 mm
CICT Cutting item count
12
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CWN Cutting width minimum
4 mm
CXSC Coolant exit style code
0 - Without coolant exit
D2A Corner chamfer length Pos. A
2 mm

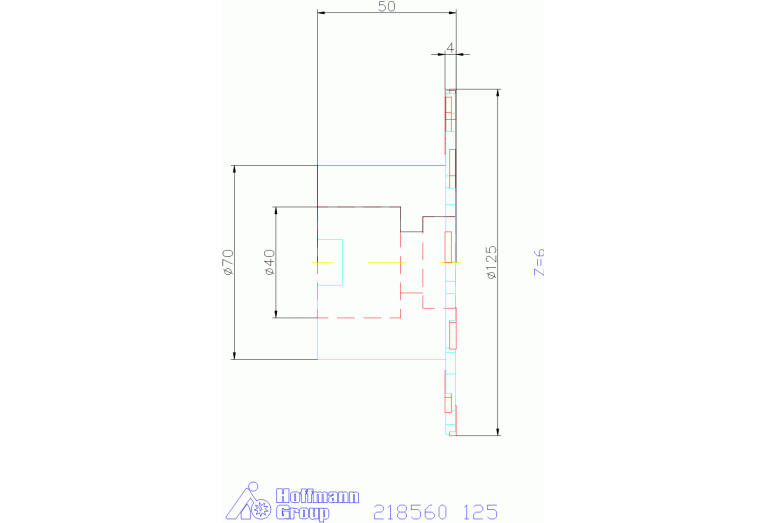

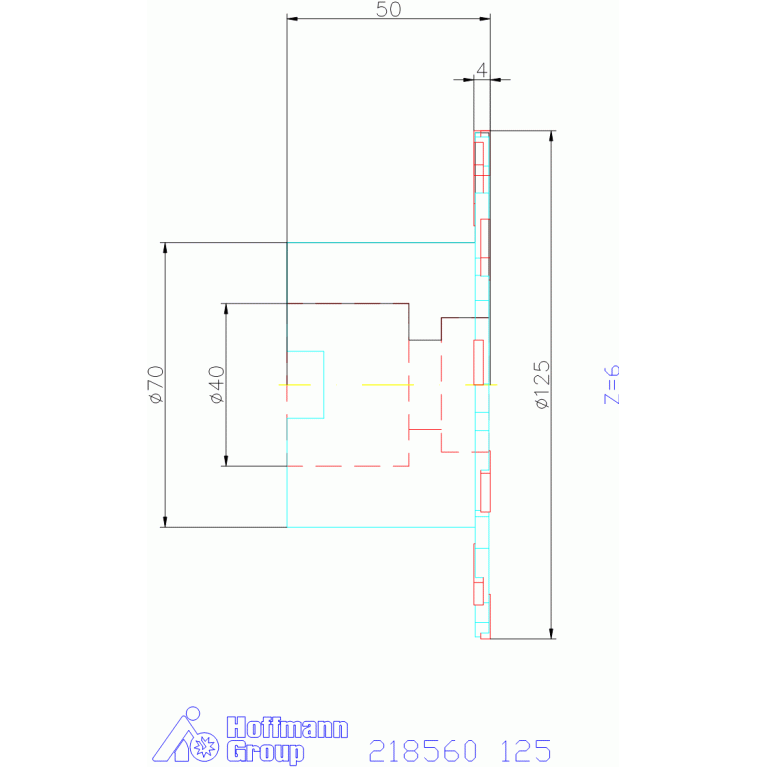

DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DHUB Hub diameter
70 mm
DIN
FDA04002200
FamilyProducts
GARANT Side milling cutter
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SNHX1102**
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SN1102007N
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002200
Name Identifying order number
218560 125
OAL Overall length
50 mm
Working process
FNU - Groove milling,FTR - Slot cutting
WT Weight of item
0.95 kg
ZEFP Peripheral effective cutting edge count
6
