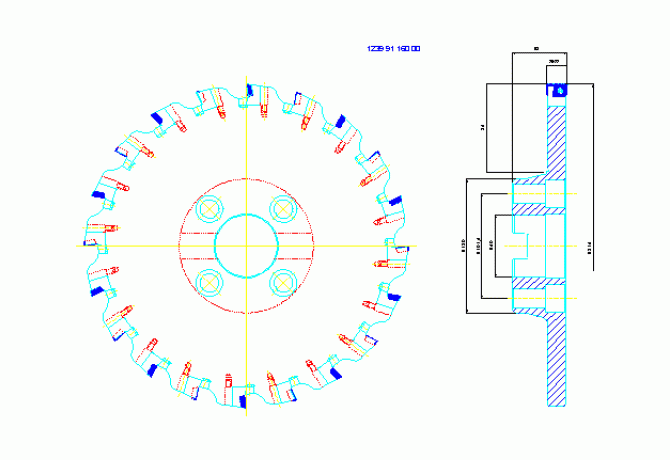

12399116000
12399116000
Артикул:
2004097
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
86 Degree
A1B Cutting edge angle major Pos. B
86 Degree
A2A Clearance angle major Pos. A
15 Degree
A2B Clearance angle major Pos. B
15 Degree
ADJBY Adjustment property
0 - Adjustment not possible
B1A Cutting edge length Pos. A
12.731 mm
B1B Cutting edge length Pos. B
12.731 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BLDA Tool style code Position A
3
BLDB Tool style code Position B
3
C1A Insert thickness Pos. A
4.76 mm
C1B Insert thickness Pos. B
4.76 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
86 mm
CICT Cutting item count
20
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
WI - Widia
CWN Cutting width minimum
20 mm
CWX Cutting width maximum
22 mm
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DBC diameter bolt circle 2
101.6 mm
DC Cutting diameter
315 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2577.6 €
DHUB Hub diameter
130 mm
DIN
SPK06000200
FamilyProducts
M 900 side milling cutter with plate, c.width adj.
G61 Bolt hole circle count
1
HAND Cutting direction
N - Neutral
ID Technical product number
2004097
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LCB Overlappinginterlocking capabilty
0
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
MD1204083N
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
SPK Spindle nose mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK06000200
Name Identifying order number
12399116000
OAL Overall length
53 mm
RPMX Rotational speed maximum
3220 1/min
Working process
FNU - Groove milling
WT Weight of item
11.3 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
