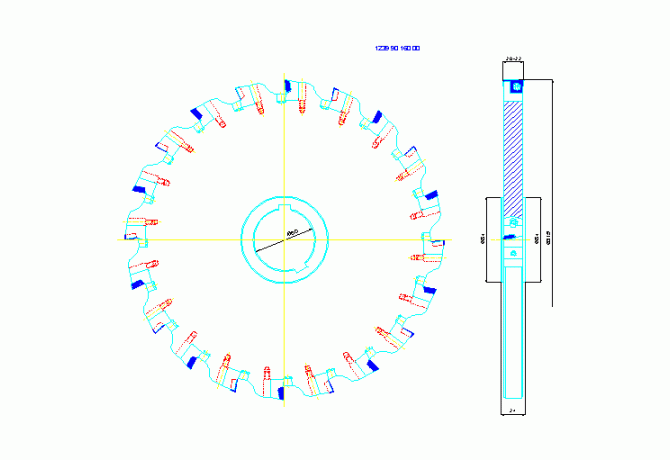

Главная Каталог продукции Toolunited 14 308-05 - Full-side slot milling cutter 12399016000

12399016000

12399016000 12399016000

12399016000

Widia
Артикул: 2004082
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
86 Degree
A2A Clearance angle major Pos. A
15 Degree
ADJBY Adjustment property
0 - Adjustment not possible
B1A Cutting edge length Pos. A
12.731 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
BI Block index
1
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
WI - Widia
CWN Cutting width minimum
20 mm
CWX Cutting width maximum
22 mm
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
315 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2351.5 €
DHUB Hub diameter
84 mm
DIN
FKA06000100
FamilyProducts
TWINCUT-VA 45°-Face Milling Cutters
HAND Cutting direction
N - Neutral
ID Technical product number
2004082
Interface codes
J6 /
ISYC Subclass
308-05 - Full-side slot milling cutter
LCB Overlappinginterlocking capabilty
0
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
MD1204083N
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
MD1204083N
LOC-03 CCFMS Form
04
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FKA06000100
Name Identifying order number
12399016000
OAL Overall length
24 mm
RPMX Rotational speed maximum
3220 1/min
Working process
FNU - Groove milling
WT Weight of item
9.4 kg
