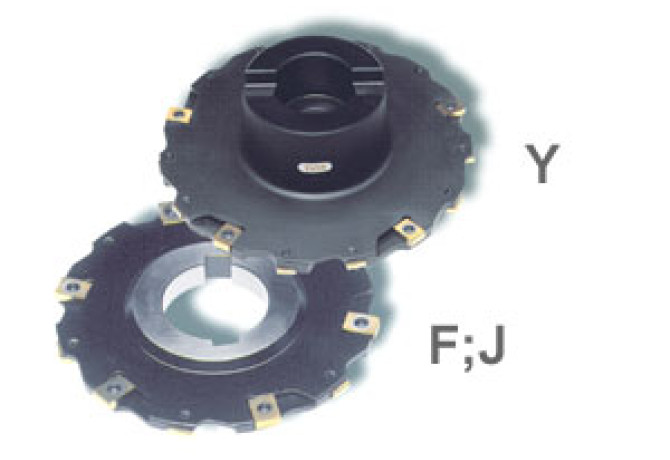

100G10N-S90LN12N06

100G10N-S90LN12N06 100G10N-S90LN12N06

100G10N-S90LN12N06

Ceratizit
Артикул: 100G10N-S90LN12N06
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
97 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
24 mm
CICT Cutting item count
10
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
CE - Ceratizit
CWN Cutting width minimum
6 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
DHUB Hub diameter
52 mm
DIN
FDA03200100
FamilyProducts
Maximill
GAMF Rake angle radial
-2 Degree
GAMP Rake angle axial
-2 Degree
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
308-05 - Full-side slot milling cutter
LCB Overlappinginterlocking capabilty
0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03200100
Name Identifying order number
100G10N-S90LN12N06
OAL Overall length
12 mm
Working process
FNU - Groove milling
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
