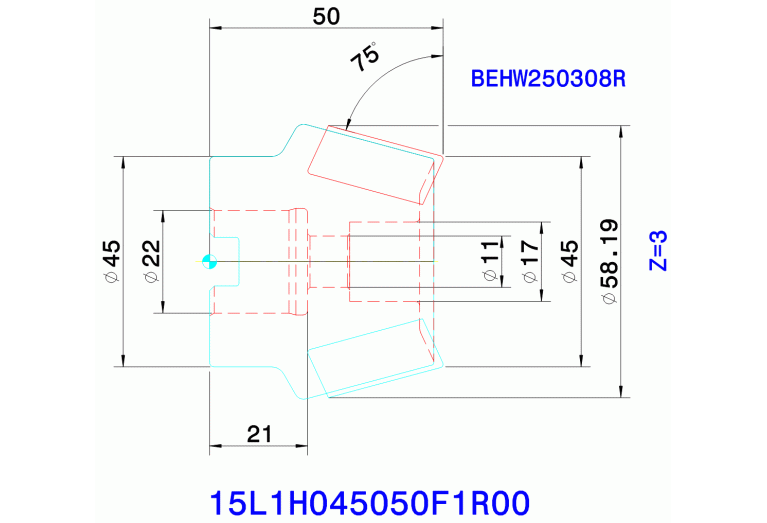

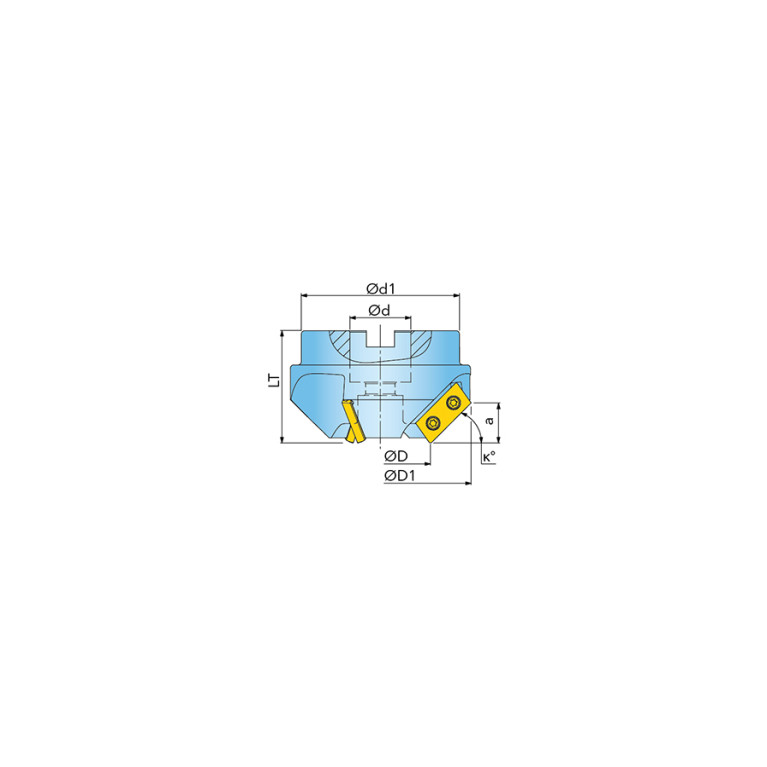

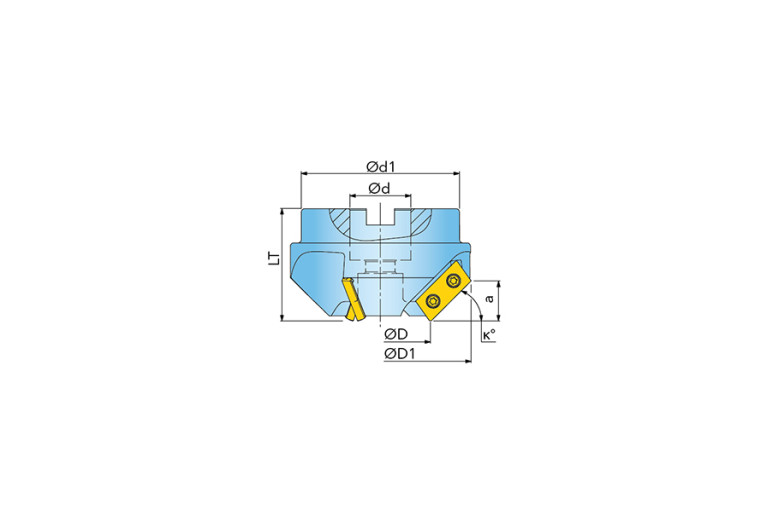

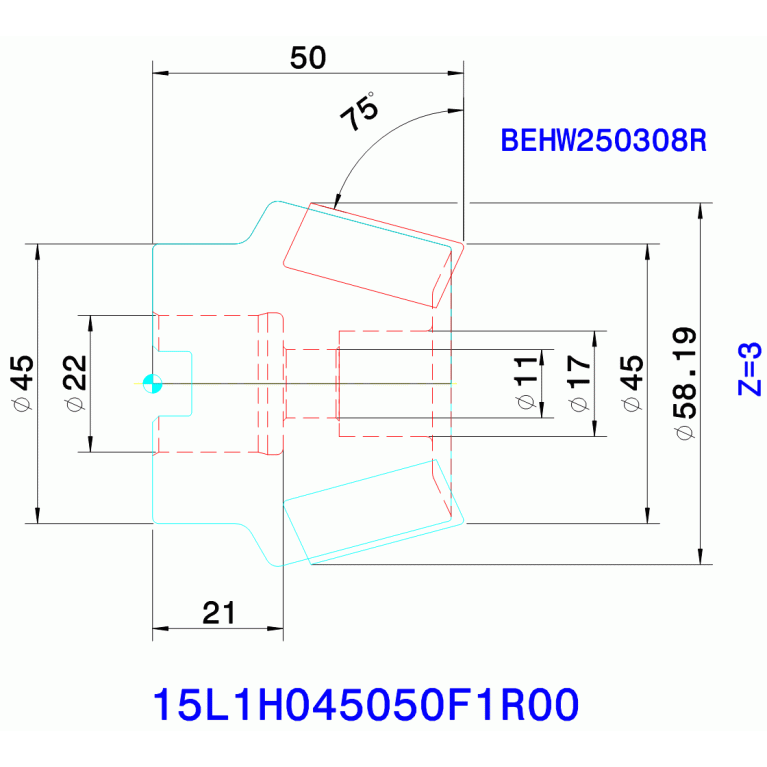

Главная Каталог продукции Toolunited 14 308-08 - Full-side angular slot milling cutter 15L1H045050F1R00

15L1H045050F1R00

15L1H045050F1R00 15L1H045050F1R00 15L1H045050F1R00 15L1H045050F1R00

15L1H045050F1R00

Ingersoll
Артикул: 3027799
В наличии
В корзину
Описание
Характеристики
BI Block index
1
CCONMS Connection count machine side
1
CDX Cutting depth maximum
24.4 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
45 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
58.1 mm
Delivery state
LH - Stocked
DHUB Hub diameter
45 mm
DIN
FDA02202200
FamilyProducts
Finishing Chamfer Mill 15 1H...F
HAND Cutting direction
R - Right
ID Technical product number
3027799
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-08 - Full-side angular slot milling cutter
KAPR Tool cutting edge angle
75 Degree
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
11
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IL-WSP-609
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
11
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-610
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202200
MIID Master insert identification
11
Name Identifying order number
15L1H045050F1R00
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
0.43 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
