Главная Каталог продукции Toolunited 14 307-02 - Non-centre cutting single row V-groove end mill SOE45 8/16-D025-02-W20R

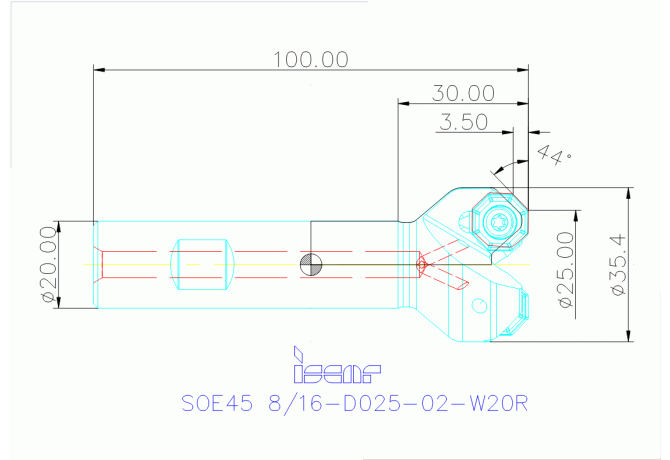

SOE45 8/16-D025-02-W20R

Артикул: 3105288

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

2.9 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

25.3 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

29.4 mm

DIN

ZYL02001015

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Multifunctional Endmills for Octagonal, Square and Round Insert Contours with Various Entry Angles

HAND Cutting direction

R - Right

ID Technical product number

3105288

Interface codes

J6 / J61

ISO

ZYL10G2000h$06

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

45 Degree

LH Head length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001015

LPR Protruding length

50 mm

Name Identifying order number

SOE45 8/16-D025-02-W20R

OAL Overall length

101.2 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.25 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
