Главная Каталог продукции Toolunited 14 307-02 - Non-centre cutting single row V-groove end mill E45X D06-C12-06

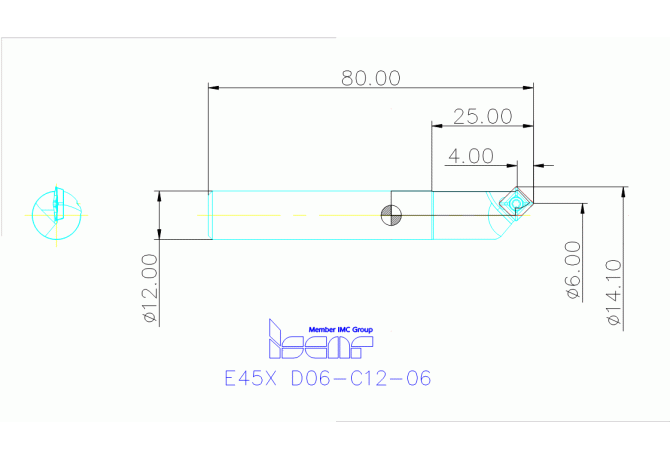

E45X D06-C12-06

Артикул: 3110505

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

4 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

6 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

14.1 mm

DIN

ZYL01200105

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

45° Chamfering Endmills Carrying X/Q/SOMT 06 Inserts

HAND Cutting direction

R - Right

ID Technical product number

3110505

Interface codes

J6 / J61

ISO

ZYL01G1200h$06

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

45 Degree

LF Functional length

80 mm

LH Head length

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

35 mm

Name Identifying order number

E45X D06-C12-06

OAL Overall length

80 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.06 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
