Главная Каталог продукции Toolunited 14 307-02 - Non-centre cutting single row V-groove end mill CE45-1107R-S20

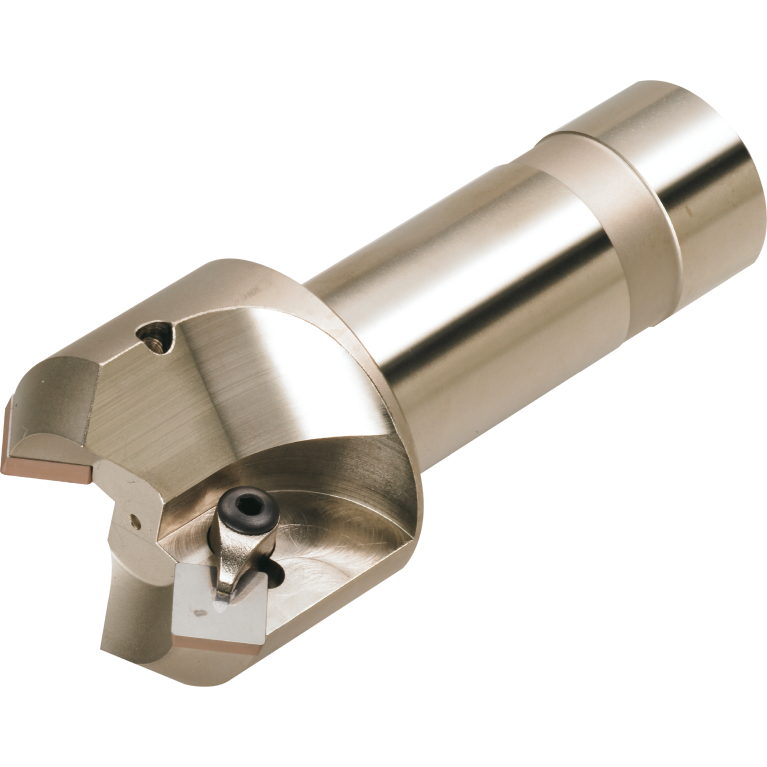

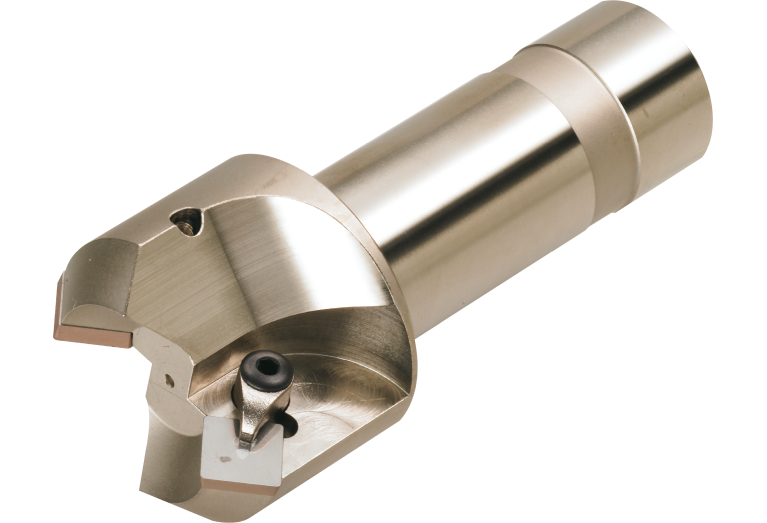

CE45-1107R-S20

CE45-1107R-S20 CE45-1107R-S20 CE45-1107R-S20

CE45-1107R-S20

Korloy
Артикул: 1-06-010517
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
APMX Depth of cut maximum
7 mm
BD Body diameter
21.9 mm
BI Block index
1
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
ZYL02001005
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
CE (Back & Front)
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-010517
Interface codes
J6 /
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
SPMT110408-KC
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SP1104 3N
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001005
MIID Master insert identification
SPMT110408-KC
Name Identifying order number
CE45-1107R-S20
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
1
