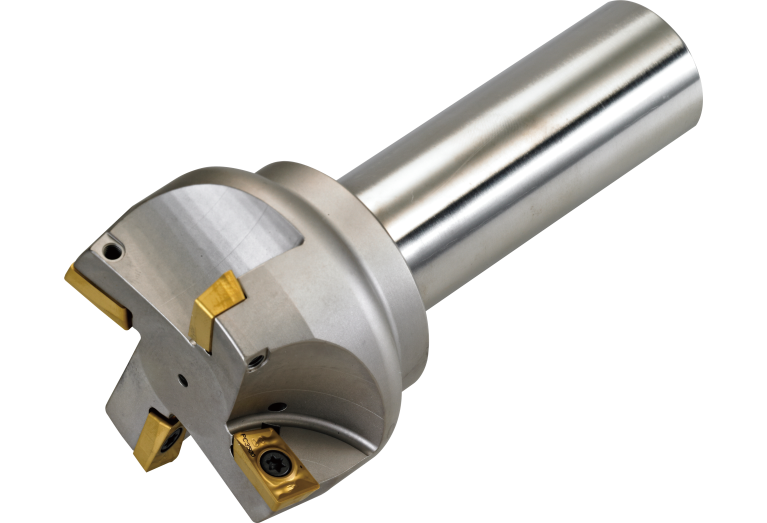

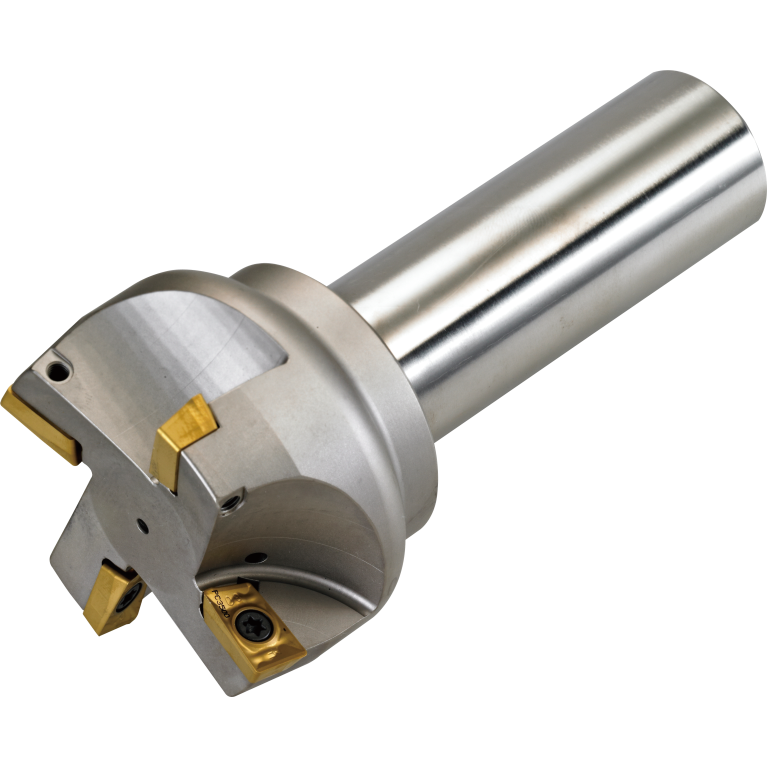

Главная Каталог продукции Toolunited 14 307-02 - Non-centre cutting single row V-groove end mill AMS3050HSE

AMS3050HSE

AMS3050HSE AMS3050HSE AMS3050HSE

AMS3050HSE

Korloy
Артикул: 1-06-015727
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
6 mm
BI Block index
1
BLDA Tool style code Position A
5
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

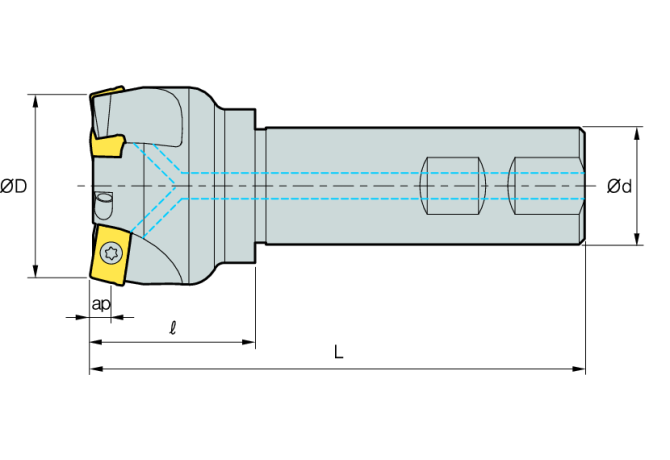

DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
ZYL03201015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
AMS3000SE
GAMF Rake angle radial
-3 Degree
GAMP Rake angle axial
-4.5 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-015727
Interface codes
J6 /
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
75 Degree
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
AP1604 3R
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
AP1604PD3R
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
LPR Protruding length
45 mm
Name Identifying order number
AMS3050HSE
OAL Overall length
135 mm
Working process
No working processes available
WT Weight of item
1 kg
ZEFP Peripheral effective cutting edge count
3
