Главная Каталог продукции Toolunited 14 307-02 - Non-centre cutting single row V-groove end mill 25D2R038B25SSP12

25D2R038B25SSP12

Артикул: 25D2R038B25SSP12

В наличии

В корзину

Описание

Характеристики

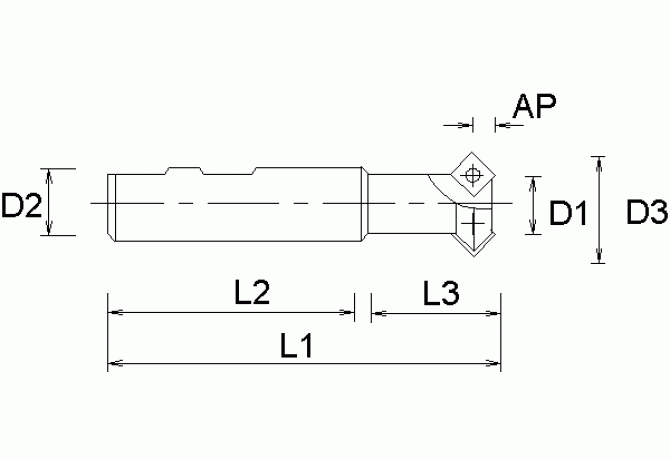

APMX Depth of cut maximum

9 mm

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

KH - Kennametal

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

42 mm

Delivery state

LH - Stocked

DIN

KH-FWSPI SP1225

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

FACING MILLS 45° SP..1204

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-FWSPI SP1225

LPR Protruding length

39 mm

Name Identifying order number

25D2R038B25SSP12

OAL Overall length

96 mm

Working process

No working processes available
