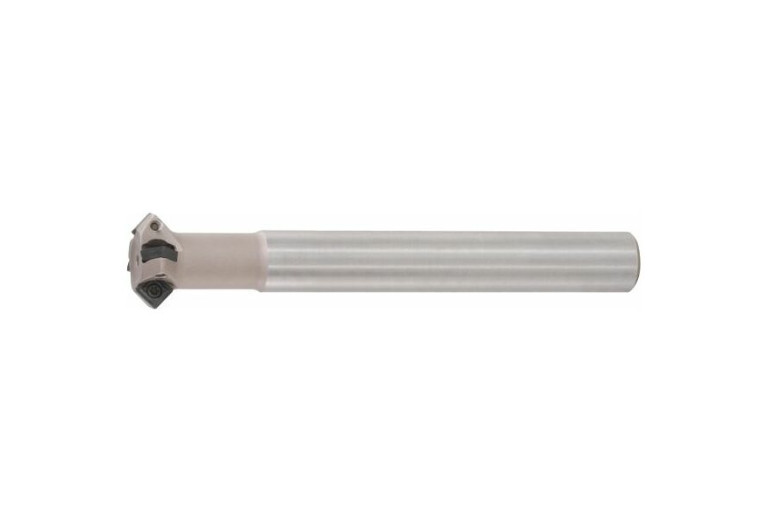

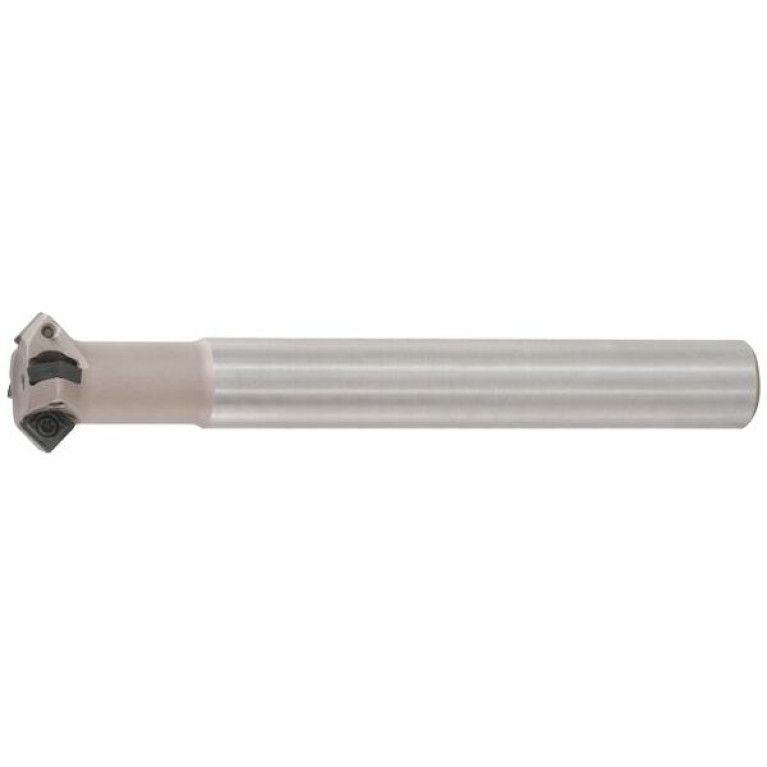

Главная Каталог продукции Toolunited 14 307-02 - Non-centre cutting single row V-groove end mill 216460 12

216460 12

216460 12 216460 12 216460 12

216460 12

Hoffmann Group
Артикул: 216460 12
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
1.5 mm
BD Body diameter
18.3 mm
BLDA Tool style code Position A
2
CCONMS Connection count machine side
1
CICT Cutting item count
4
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
18.5 mm
Delivery state valid from
1/11/2017
DIN
ZYL01200105
DN Neck diameter
11 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
GARANT High-performance 45° chamfer mill
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree

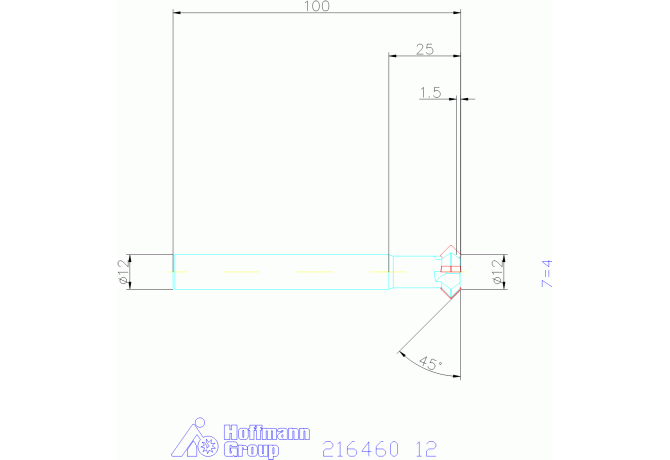

LF Functional length
100 mm
LH Head length
23.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200105
LPR Protruding length
25 mm
LU Usable length
1.5 mm
Name Identifying order number
216460 12
OAL Overall length
100 mm
Working process
No working processes available
WT Weight of item
0.075 kg
ZEFP Peripheral effective cutting edge count
4
