216100 25
216100 25
Артикул:
216100 25
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
5 mm
BD Body diameter
24.5 mm
BLDA Tool style code Position A
2
CCONMS Connection count machine side
1
CICT Cutting item count
2
COMPC Company code
HOG - Hoffmann Group
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
36.5 mm
Delivery state valid from
1/11/2017
DIN
ZYL02500105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts

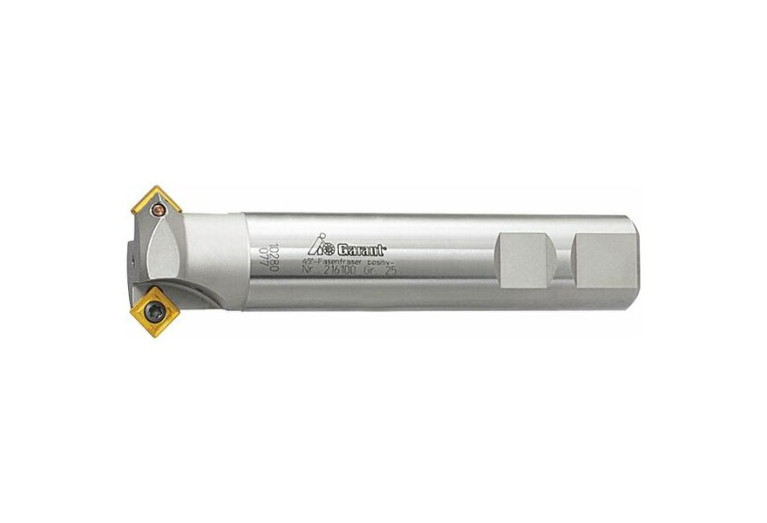

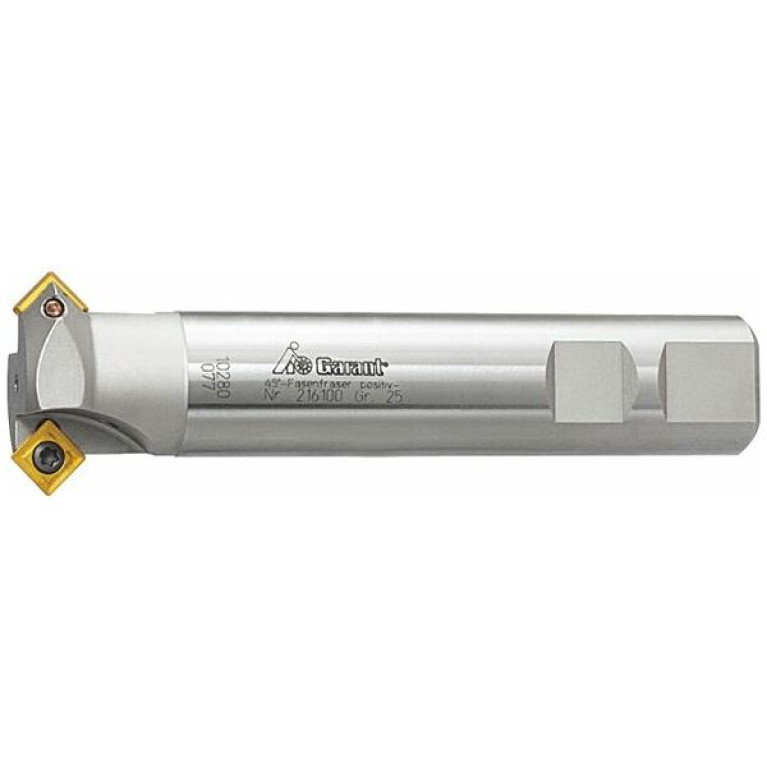

GARANT 45° chamfer mill
GAMF Rake angle radial
6 Degree
GAMP Rake angle axial
-4 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree
LF Functional length
130 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500105
LPR Protruding length
74 mm
LU Usable length
5 mm
Name Identifying order number
216100 25

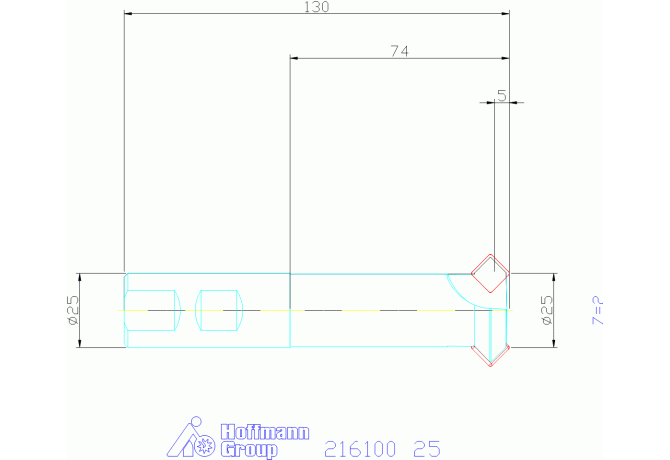

OAL Overall length
130 mm
Working process
No working processes available
WT Weight of item
0.45 kg
ZEFP Peripheral effective cutting edge count
2
