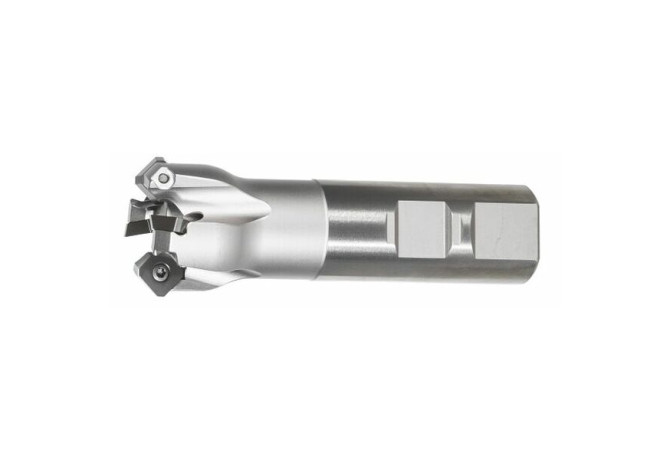

Главная Каталог продукции Toolunited 14 307-02 - Non-centre cutting single row V-groove end mill 214395 25/4

214395 25/4

214395 25/4 214395 25/4 214395 25/4

214395 25/4

Hoffmann Group
Артикул: 214395 25/4
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
3.84 mm
BD Body diameter
30.85 mm
BLDA Tool style code Position A
2
CCONMS Connection count machine side
1
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
33.2 mm
Delivery state valid from
1/11/2017
DIN
ZYL02501015
DN Neck diameter
24.4 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
GARANT 45° indexable end mill
GAMF Rake angle radial
10 Degree
GAMP Rake angle axial
-15 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015

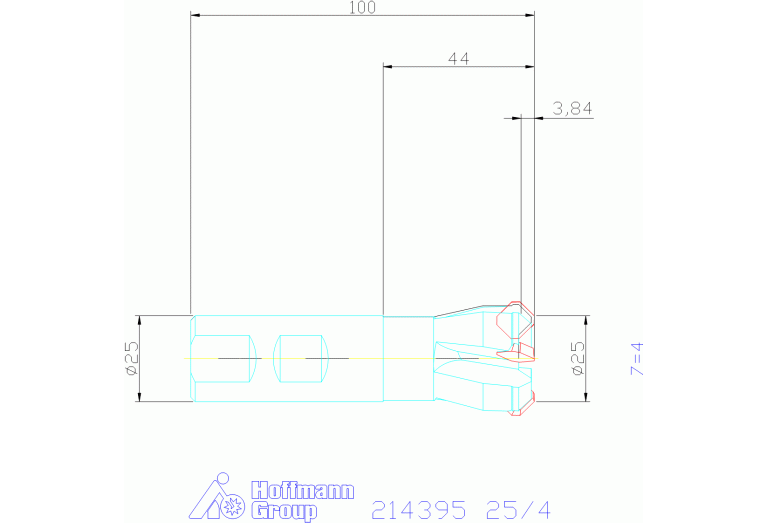

LPR Protruding length
44 mm
LU Usable length
3.84 mm
Name Identifying order number
214395 25/4
OAL Overall length
100 mm
Working process
No working processes available
WT Weight of item
0.35 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
