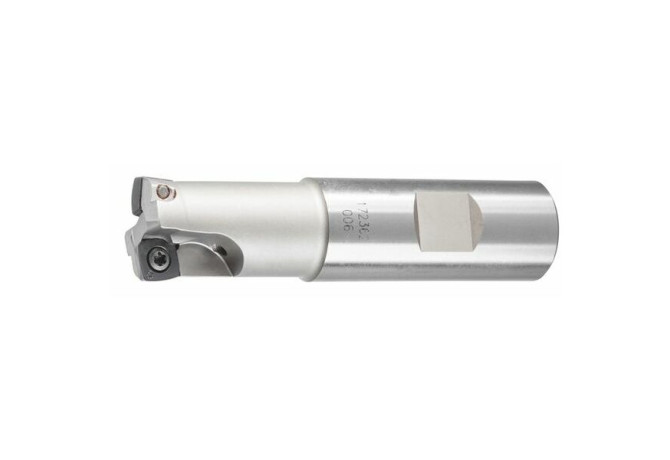

Главная Каталог продукции Toolunited 14 307-02 - Non-centre cutting single row V-groove end mill 212900 20/2

212900 20/2

212900 20/2 212900 20/2 212900 20/2

212900 20/2

Hoffmann Group
Артикул: 212900 20/2
В наличии
В корзину
Описание
Характеристики

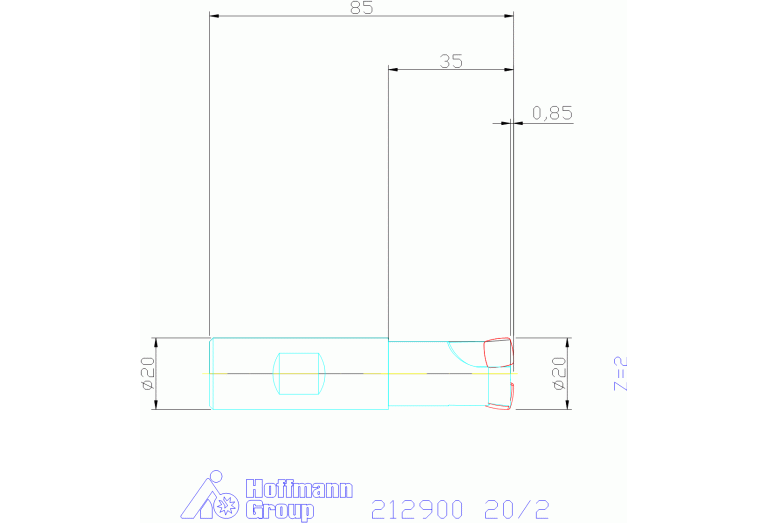

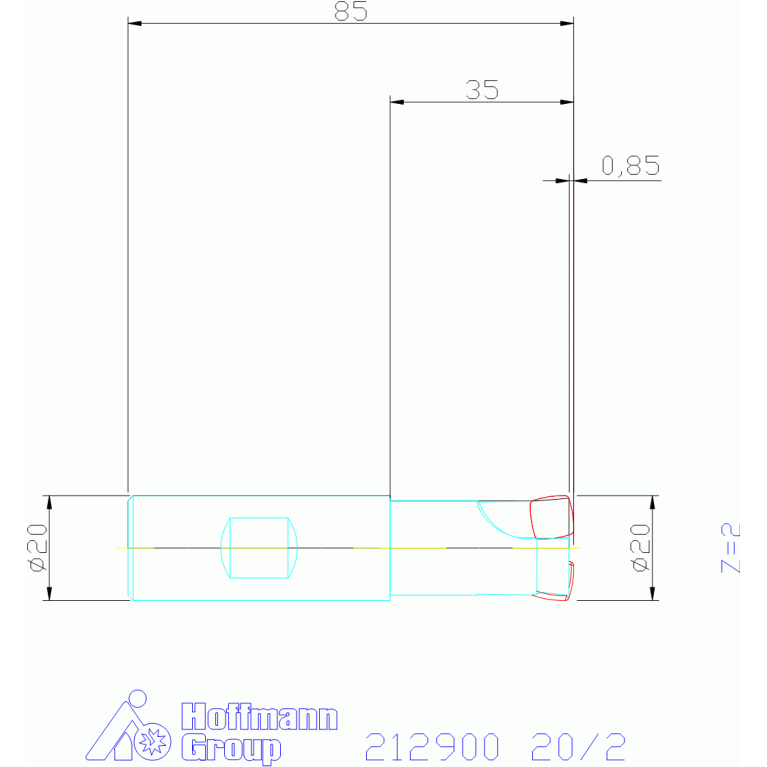

APMX Depth of cut maximum
0.85 mm
BD Body diameter
19 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
COMPC Company code
HOG - Hoffmann Group
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL02000105
DN Neck diameter
18 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
GARANT Feedking high feed rate indexable end mill
GAMF Rake angle radial
6 Degree
GAMP Rake angle axial
-3 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
8.5 Degree
LF Functional length
85 mm
LH Head length
35 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000105
LPR Protruding length
35 mm
LU Usable length
0.85 mm
Name Identifying order number
212900 20/2
OAL Overall length
85 mm
Working process
No working processes available
WT Weight of item
0.17 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
