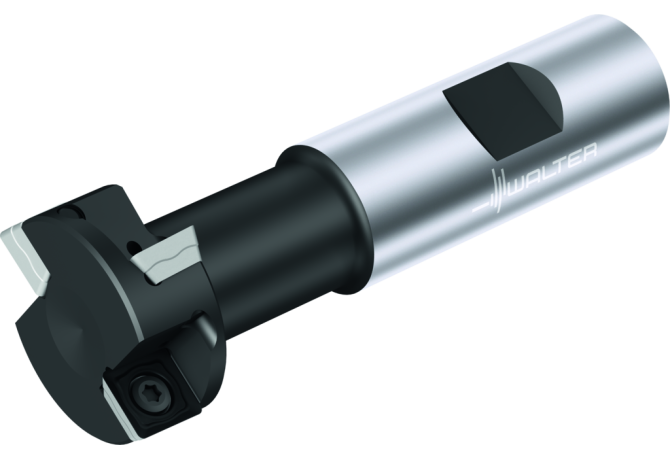

Главная Каталог продукции Toolunited 14 307-04 - T-slot end mill M4575.047-W31-02-21

M4575.047-W31-02-21

M4575.047-W31-02-21 M4575.047-W31-02-21 M4575.047-W31-02-21

M4575.047-W31-02-21

Walter
Артикул: 6795974
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
20.75 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
46.25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL12501035
DN Neck diameter
26.2 mm
FamilyProducts
T-slot milling cutters M4575
HAND Cutting direction
R - Right
ID Technical product number
6795974
Interface codes
J6 / J61
ISO
ZYL10S1250h$06
ISYC Subclass
307-04 - T-slot end mill
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10S1250h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12501035
LPR Protruding length
63.5 mm
LU Usable length
63.5 mm
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number
M4575.047-W31-02-21
OAL Overall length
121.44 mm
RPMX Rotational speed maximum
17900 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FNU - Groove milling
WT Weight of item
0.701 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
