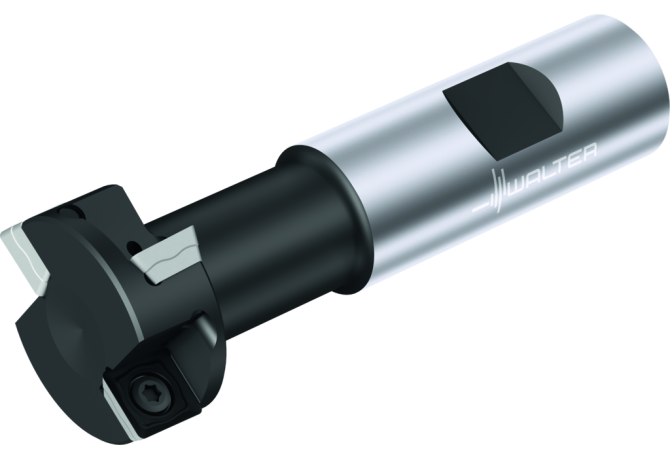

Главная Каталог продукции Toolunited 14 307-04 - T-slot end mill M4575-040-W25-02-17

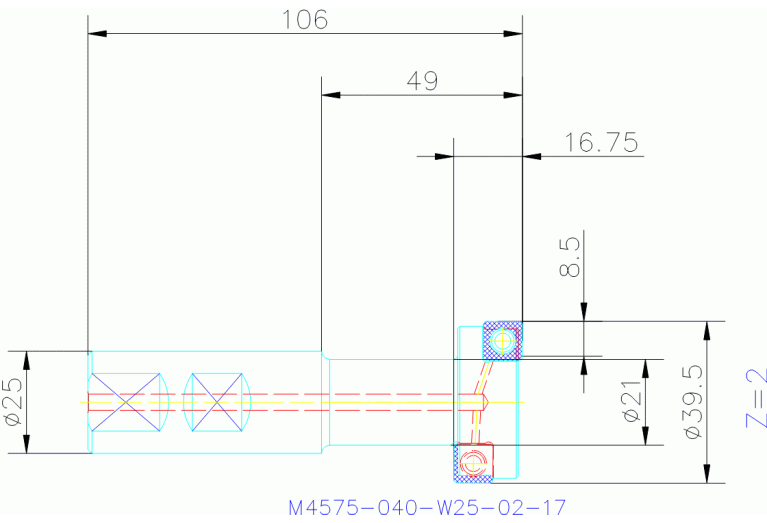

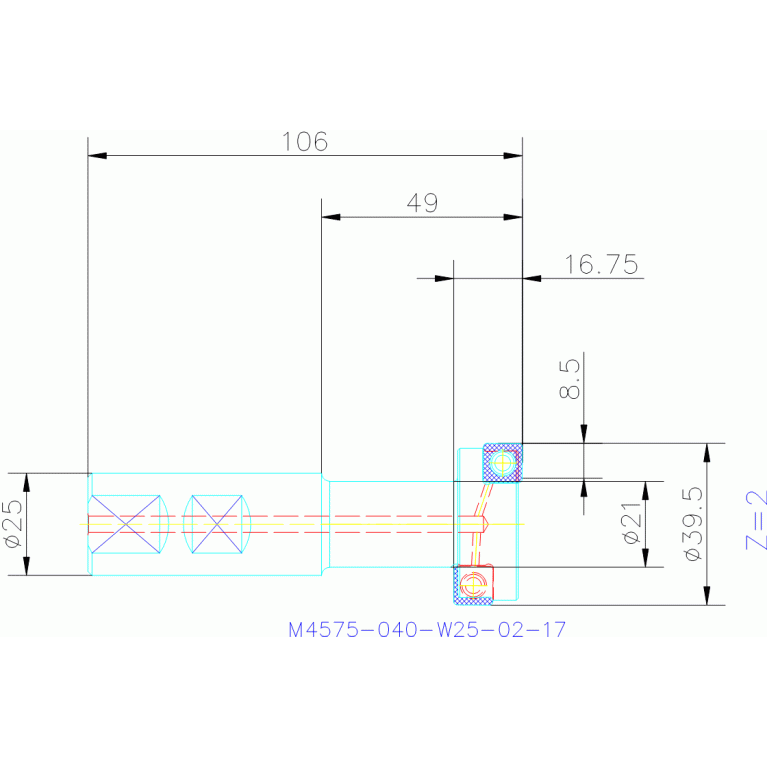

M4575-040-W25-02-17

M4575-040-W25-02-17 M4575-040-W25-02-17 M4575-040-W25-02-17 M4575-040-W25-02-17

M4575-040-W25-02-17

Walter
Артикул: 6795938
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
16.75 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

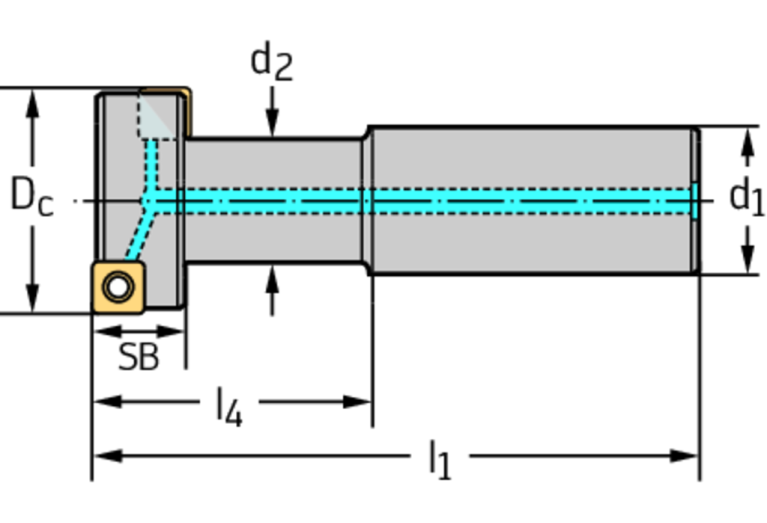

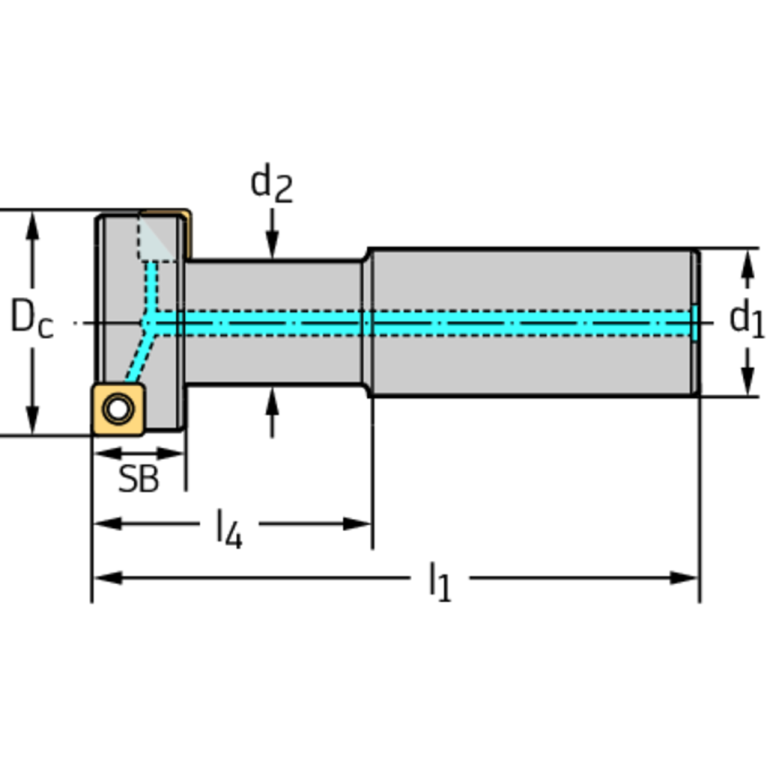

DC Cutting diameter
39.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02501015
DN Neck diameter
21 mm
FamilyProducts
T-slot milling cutters M4575
HAND Cutting direction
R - Right
ID Technical product number
6795938
Interface codes
J6 / J61
ISO
ZYL10G2500h$06
ISYC Subclass
307-04 - T-slot end mill
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LPR Protruding length
49 mm
LS Shank length
56 mm
LU Usable length
49 mm
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number
M4575-040-W25-02-17
OAL Overall length
106 mm
RPMX Rotational speed maximum
27600 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FNU - Groove milling
WT Weight of item
0.418 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
