Главная Каталог продукции Toolunited 14 307-04 - T-slot end mill HSK-63-380.0080.08

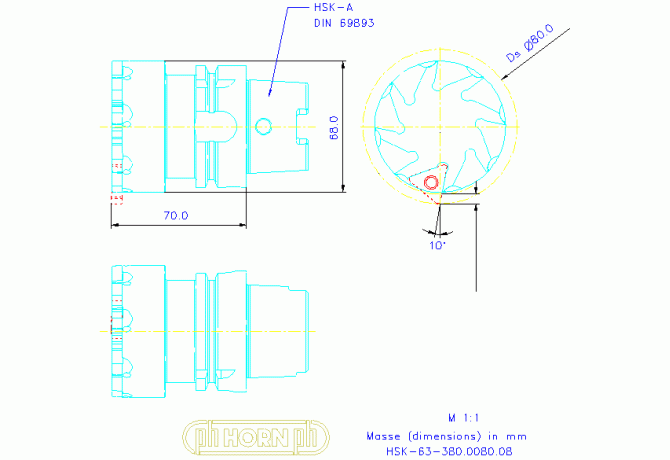

HSK-63-380.0080.08

Артикул: HSK-63-380008008

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6 mm

BI Block index

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HORN - Paul Horn

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

80 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/15/2014

DIN

HSK06300585

DN Neck diameter

68 mm

FamilyProducts

Milling Cutter

HAND Cutting direction

R - Right

ID Technical product number

HSK-63-380008008

Interface codes

J6 /

ISYC Subclass

307-04 - T-slot end mill

LOC-01 BI Block index

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

HORN-31400

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300585

Name Identifying order number

HSK-63-380.0080.08

OAL Overall length

70 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
