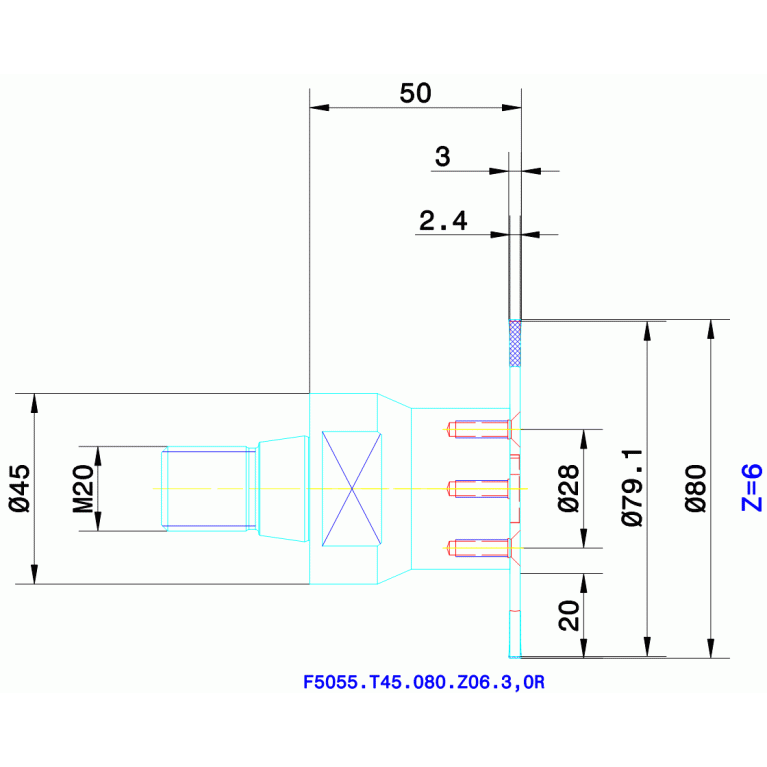

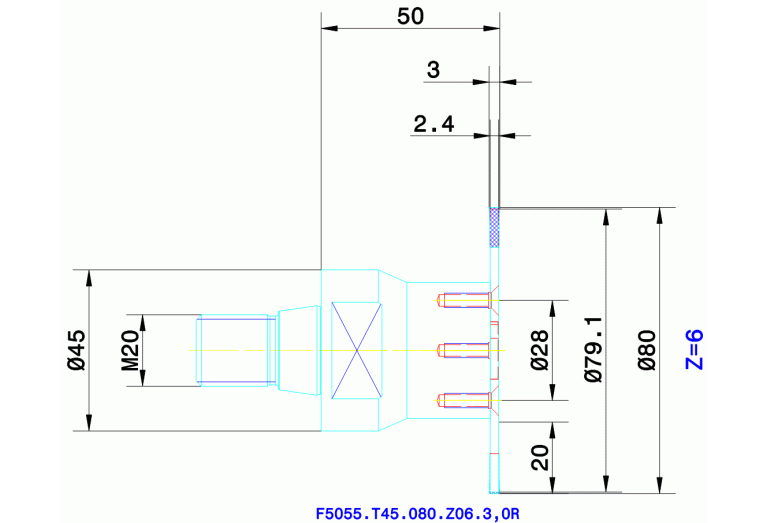

F5055.T45.080.Z06.3,0R
F5055.T45.080.Z06.3,0R
Артикул:
6682479
В наличии
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SAW04500185
FamilyProducts

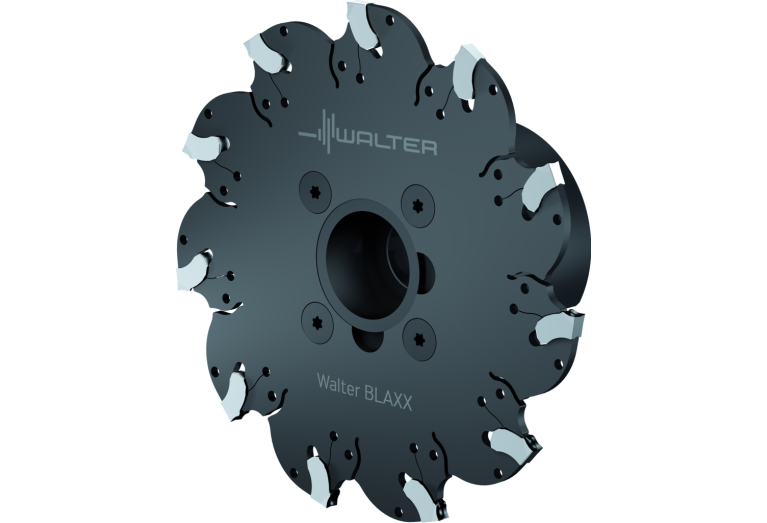

Parting and slitting cutters F5055
HAND Cutting direction
R - Right
ID Technical product number
6682479
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
SAW01C0450$$$$
ISYC Subclass
307-04 - T-slot end mill
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0450
LOC-03 DCONMS Diameter
45 mm
LOC-03 ISO
SAW01C0450$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW04500185
LPR Protruding length
50 mm
LU Usable length
50 mm
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number
F5055.T45.080.Z06.3,0R
OAL Overall length
85 mm
RPMX Rotational speed maximum
4000 1/min
Working process
FNU - Groove milling
WT Weight of item
0.8 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
